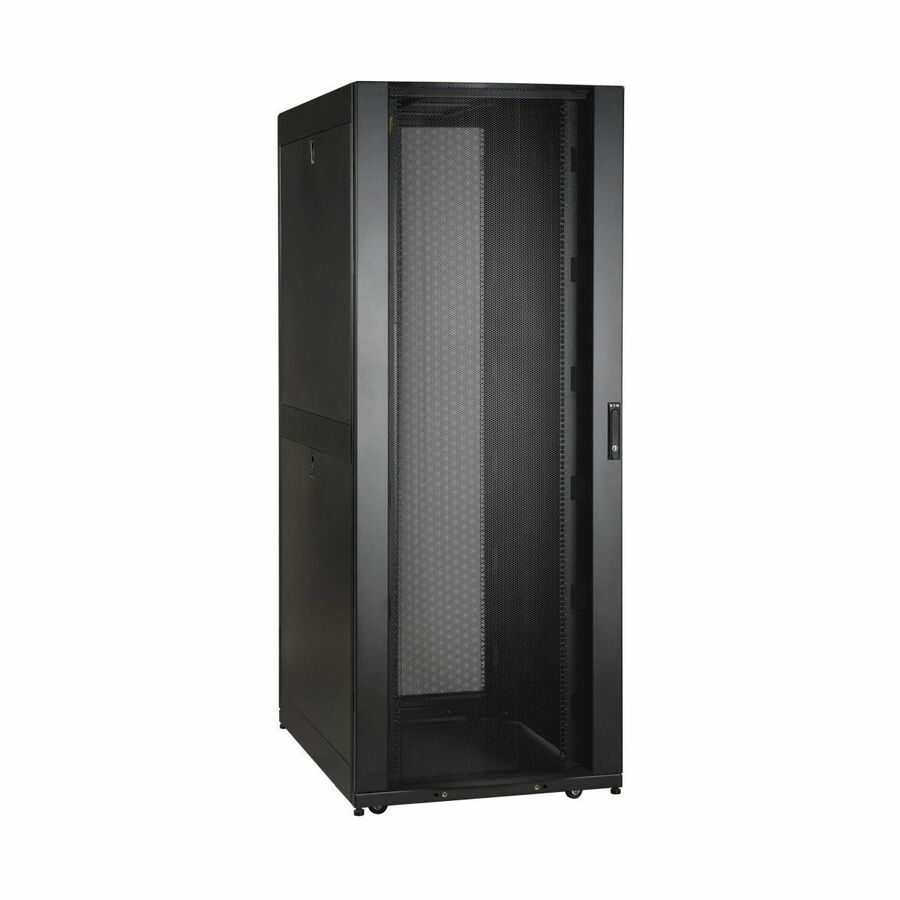

A WIDE version of our standard 42U SmartRack. This enclosure is 750mm wide (29.5") compared to the standard 600mm wide (23.6"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling. All features from the standard SmartRacks carry over to these wide racks to allow cross usage of accessories. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.
- Locking, removable, reversible front and rear doors
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Standard 42" (1050mm) depth
- 30" (750mm) width for optimizing airflow through cabinet
- 4 interior vertical posts with unthreaded square hole openings
- 42U SmartRack enclosure with doors and side panels
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Size / Dimensions | |
|---|---|
| Static/Stationary Weight Capa | 3000 lb |
| Rack Height | 42U |
| General Features | |
|---|---|
| Dynamic/Rolling Weight Capaci | 2250 lb |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | SR42UBWD Rack Enclosure Server Cabinet Wide - 42U - 19" |
