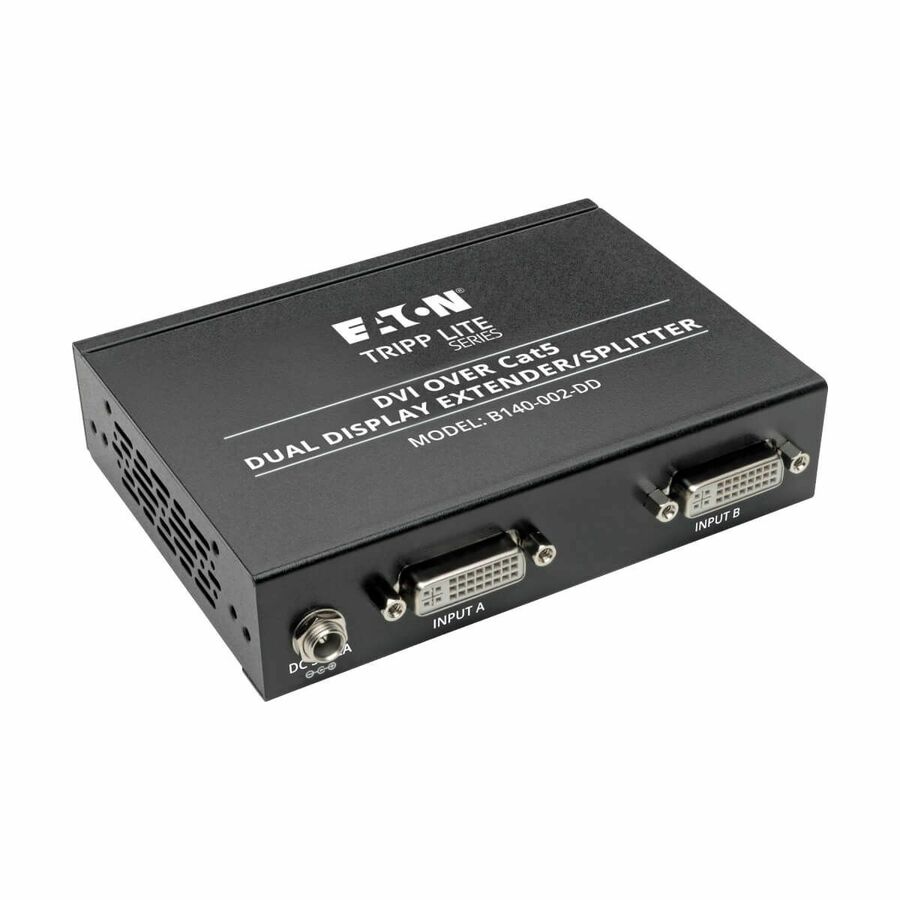

Tripp Lite's B140-002-DD takes in two PC DVI source video signals, and splits each to two remote monitors. Passive, non-powered Receivers allow distances up to 50ft @ 1920x1080 resolution, or 100ft @ 1024x768 resolution, over solid conductor Cat6 cable. Active, powered Receivers extend the distance to 150ft @ 1920x1080, and 200ft @ 1024x768 (receivers purchased separately). Additional monitors can be daisy-chained (up to 3) on each channel, allowing four monitors per channel, by using Tripp Lite B140-110 Repeater/Extender. Tripp Lite recommends Cat6 Solid Conductor patch cables for Digital Extenders (DVI/HDMI). Tripp Lite N202 series patch cables are designed specifically for these types of devices...pre-terminated, Solid Conductor Cat6 patch cables up to 200ft.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Up to 4 displays per channel when using repeaters
- 1920 x 1200 (60Hz) resolution up to 150ft
- Split and extend Dual DVI signals from a computer to two sets of Dual Displays
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wireless |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole-mountable |
| General Features | |
|---|---|
| Number of Output Devices Supp | 4 |
| Maximum Operating Distance | 200 ft |
| Manufacturer | Eaton Corporation |
| Video Ports | |
|---|---|
| Number of DVI Inputs | 2 |
| DVI In | Yes |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twinaxial |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
