- LEDs provide for easy monitoring of the connected computers
- Supports VESA DDC2B emulation and TMDS signal pass-through
- Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
- The KVM switch stores the EDID (Extended Display Identification Data) of the connected monitors, which ensures optimal display resolution and prevents any delay or change in video resolution when switching between or booting computers
- Supports 3D graphics and gaming
- Supports hot plugging - Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
- Compatible with all major operating systems; Windows, Mac, Linux, Sun
- Connect a VGA monitor or computer port by using a P556-Series DVI to VGA adapter cable instead of the included DVI-D cables.
- DVI-I connectors support both Dual Link digital resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536
- Auto Scan mode allows you to scan the connected computers without having to manually switch between them
- Switch the KVM, USB, and Audio functionality all at the same time, or separately. KVM control can be fixed on one computer, while the USB 2.0 hub and/or Audio functionality is fixed on another
- Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
- Additional console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
- 3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
- A powered USB hub may be connected to one of the USB ports to increase the number of connected peripherals
- Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (CAC Card Reader, flash drives, printer, etc.) amongst the connected computers
- Quad-View Mode allows computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display KVM switches together

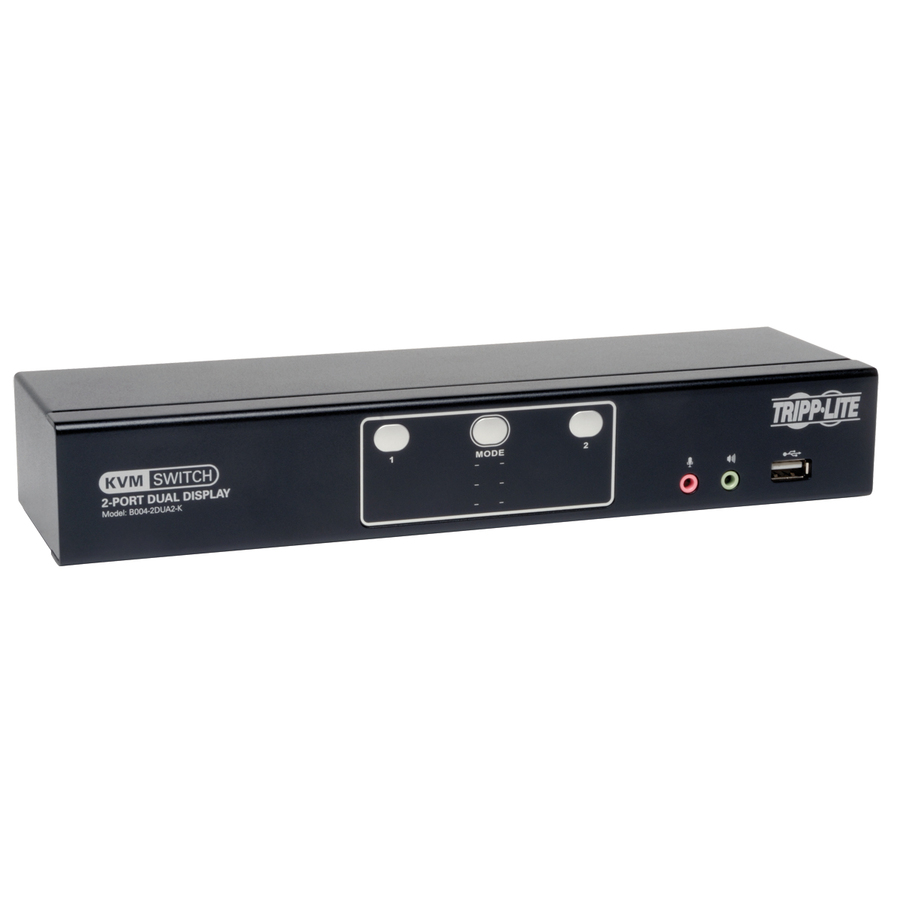

- 2-Port Dual Display DVI KVM switch with USB 2.0 Hub and Audio/ 3.5 mm Mini Stereo jacks, cables included
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WQXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240V |
| Input Voltage | 220 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2560 x 1600 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Number of Computers Supported | 2 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 6 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 2-Port Dual Monitor DVI KVM Switch TAA , GSA with Audio and USB 2.0 Hub , Cables included |
