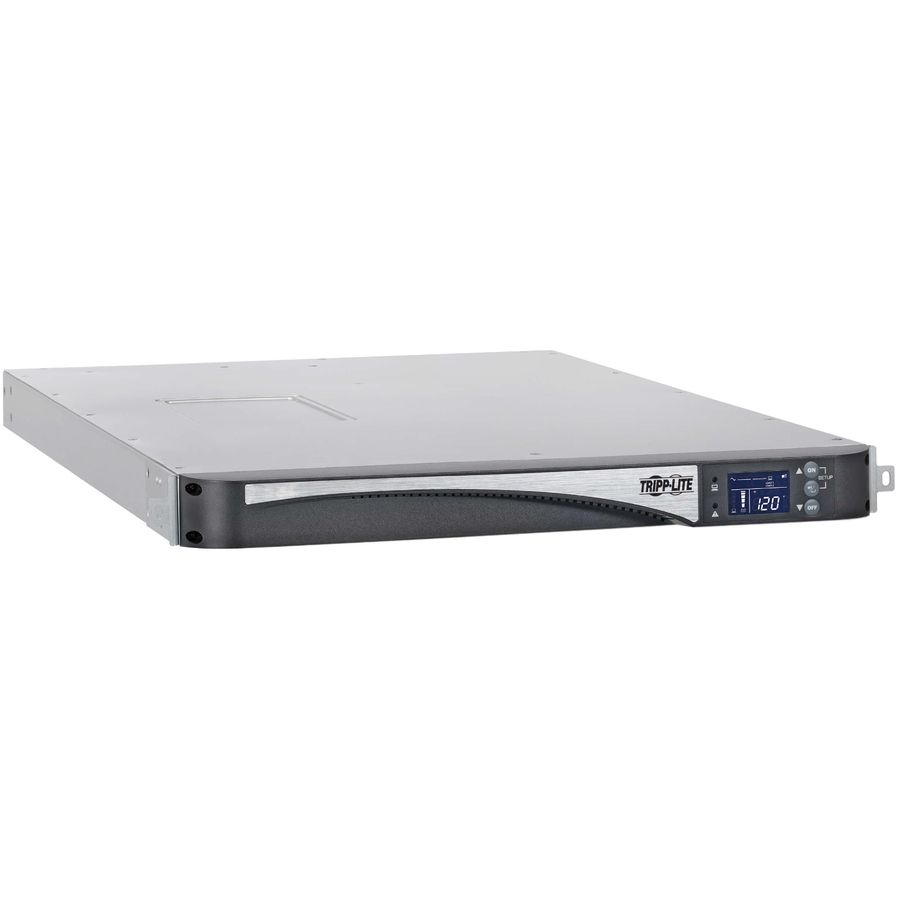

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.
Advanced Communications Ports Allow for Automatic Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included.
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- NEMA 5-20P input and 5 NEMA 5-20R outlets arranged in 2 switched load banks
- Optional WEBCARDLX network interface required to use Auto Probe feature
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| Dataline Protection | RS-232 |
| EPO Port | Yes |
| Receptacle Detail | 5 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Load Capacity (Watt) | 1600 W |
| Load Capacity (VA) | 2000 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 48 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 540 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/Web |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | UPS StartUp |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 260.45 W |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 65 dB(A) |
