- 8 x Gigabit PoE++ ports
- 2 x Gigabit SFP ports
- 240W PoE power budget
- 20Gbps switching capacity
- Fast PoE minimizes wait time for powering up PoE devices
- Support VLAN pass through
- Internal power supply
- Sturdy 1U 19" rack mountable metal housing
- Lifetime Warranty

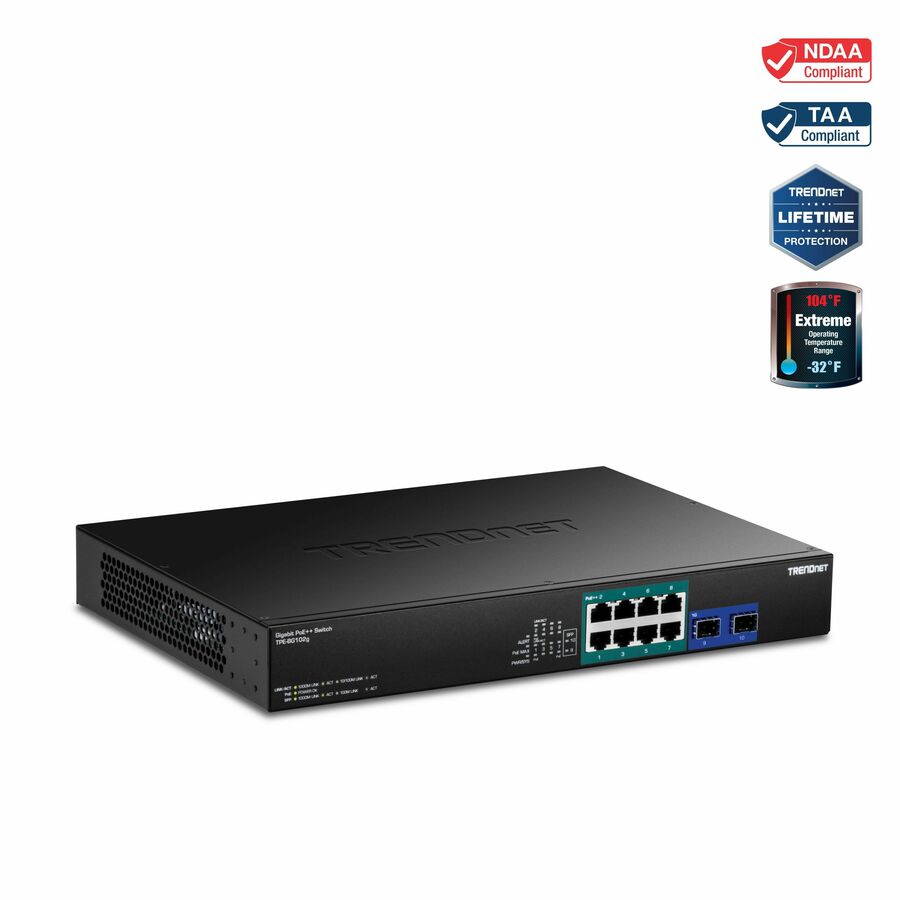

TRENDnet's Unmanaged Gigabit PoE++ Switches provide high-bandwidth performance, ease-of-use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19" rack mountable metal housing with mounting brackets included. These highpower PoE++ switches also offer gigabit SFP ports for long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's unmanaged high-power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with these high-power PoE++ switches.
Gigabit Ports
Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP ports for long distance fiber applications.
PoE Power
A 240W total PoE power budget on this 802.3bt switch supplies eight PoE++ devices with up to 95W per port.
Hardware Design
With a sturdy metal housing and rackmount brackets included, this highpower PoE++ switch is well-suited for 1U 19" rack installations.
FEATURES | Hardware Design
With a sturdy metal housing and rackmount brackets included, this high-power PoE++ switch is well- suited for 1U 19" rack installations
PoE Power
A 240W total PoE power budget on this high-power PoE switch supplies eight PoE++ devices with up to 95W per port
Fast PoE
This switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up.
Gigabit Ports
Gigabit ports provide a full switching capacity to this highpower PoE++ switch
SFP Ports
SFP ports supports long-distance fiber applications
Jumbo Frame
Sends larger packets, or Jumbo Frames (9KB), for increased performance
Smart Fan
Smart fan saves energy by autoadjusting the fan speed and use based on cooling needs
Internal Power Supply
100-240VAC, 50/60Hz internal universal switching power supply
LED Indicators
LED indicators conveniently convey port status on the highpower PoE++ switches
- 8 x Gigabit PoE++ ports
- 2 x Gigabit SFP ports
- 240W PoE power budget
- 20Gbps switching capacity
- Fast PoE minimizes wait time for powering up PoE devices
- Support VLAN pass through
- Internal power supply
- Sturdy 1U 19" rack mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| PoE Budget | 240 W |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 280 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 10 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | No |
| Frequency | 60 Hz |
| MTBF | 427588 Hour |
| Manufacturer | TRENDnet |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| NDAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 10-Port Gigabit PoE++ Switch |
