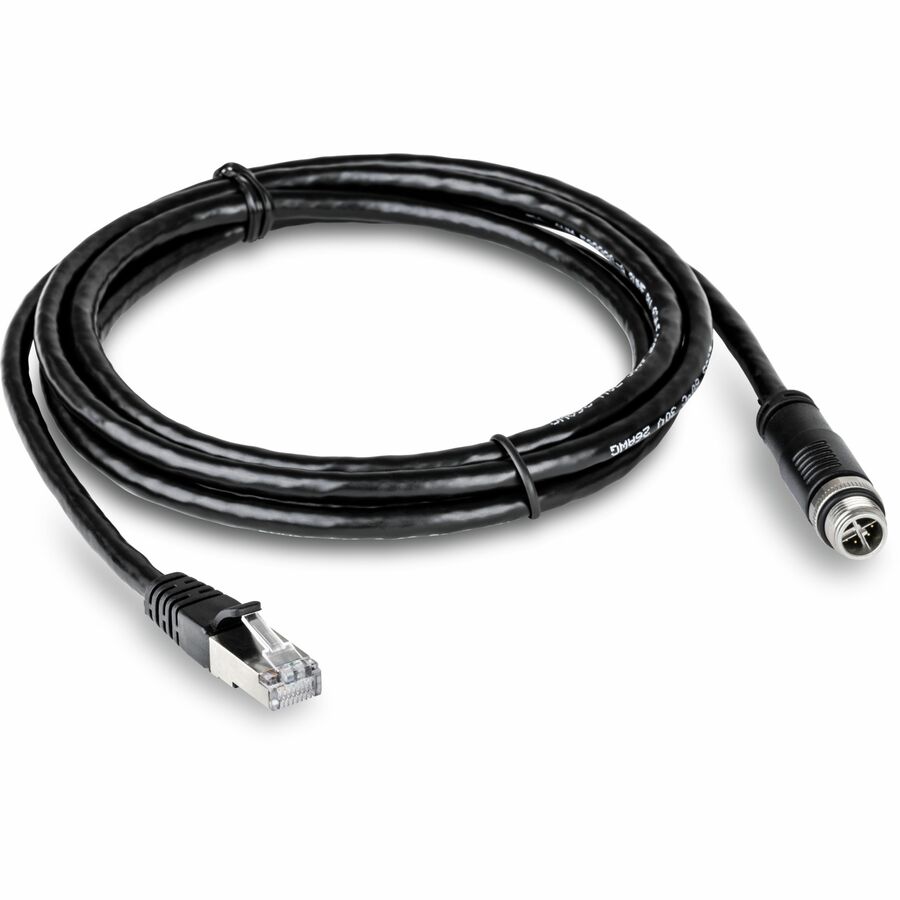

TRENDnet M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.)

This product is no longer available.

  • DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 2m (6.5 ft.) cable length
  • TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
  • INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° - 80° C (-13° - 176° F)
  • PUR JACKET: The ultra-durable polyurethane "PUR" jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
  • MAX CONTACT RESISTANCE: 20Ω

TRENDnet's M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.

Cable Interfaces

Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch

Cable Length

2m (6.5 ft.) cable length

IP67 Rated Cable

Rugged IP67 weather rated cable

More from the Manufacturer

  • Cable Interfaces: Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
  • Cable Length: 2m (6.5 ft.) cable length
  • IP67 Rated Cable: Rugged IP67 weather rated cable
Brand
Brand TRENDnet
Power & Battery
PoE Budget 120 W
Input Voltage 56 V DC
Power Source Power Supply
Power Consumption 5 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor DIN Rail Mountable
General Features
MTBF 546613 Hour
Manufacturer TRENDnet
Misc Ports
Port/Expansion Slot Details 1 x Gigabit Ethernet Network
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Cable Length 6.56 ft
Cable Type M12/RJ-45
Connector Type on First End M12 - Male
Connector on First End Details 1 x 8-pin M12 - Male
Connector Gender on First End Male
Connector Type on Second End RJ-45 Network - Male
Connector Gender on Second End Male
Brand TRENDnet
UPC/GTIN 710931162707
MPN TI-CD02
Unit Count 1 Units
Warranty 1 Year
Return Policy This product is eligible for 30-day returns. See our return policy for details.
TRENDnet 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Black - Wall Mountable, DIN Rail Mountable - Lifetime Limited Warranty
