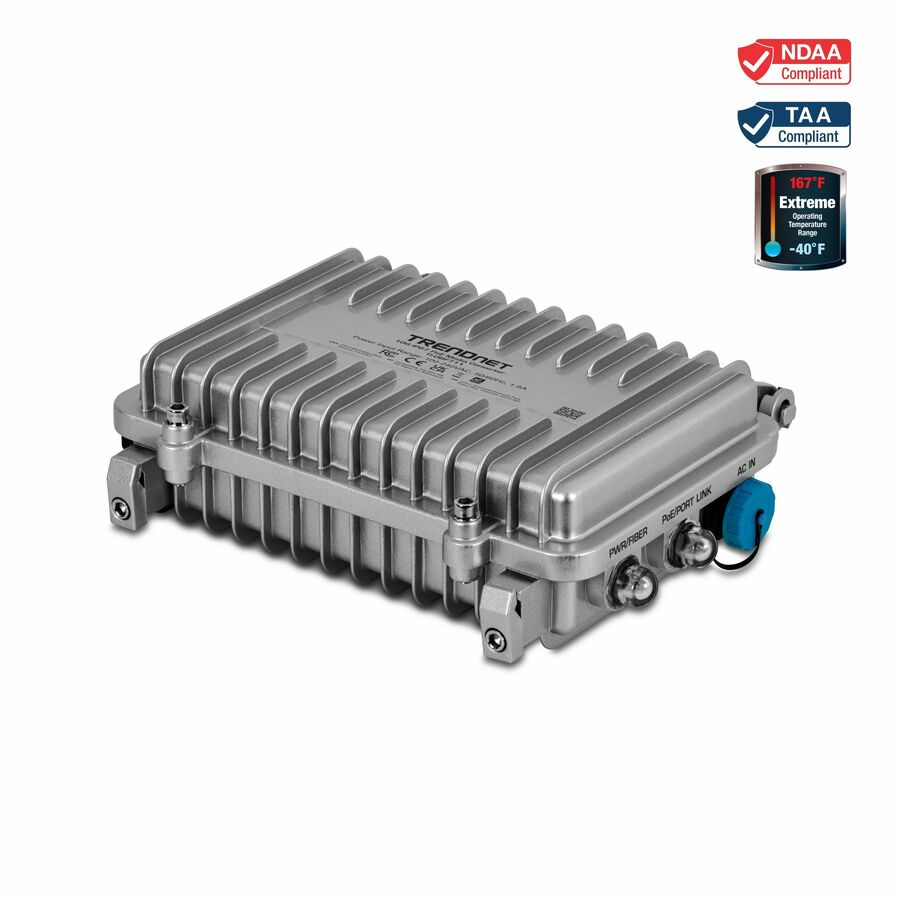

TRENDnet's Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W), model TI-OBF711, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. When paired with TRENDnet's TEG-10GBS20, this outdoor media converter can transmit data up to a range of 20km (12.42 mi.). With an operating temperature range of -40°- 75° C (-40° - 167° F), the industrial outdoor media converter features a hardened IP67 rated metal housing suitable for tough, industrial environments. The outdoor PoE++ media converter's rugged design also provides protection from shock, freefall, and vibration.
Network Applications
Network devices outdoors for surveillance, transportation, and corporate applications.
PoE++ Output
Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.
Outdoor Design
Hardened IP67 outdoor media converter for industrial networking environments within a -40°- 75° C (-40° - 167° F) operating temperature range.
10G PoE++ Port
One 10G PoE++ Ethernet port for high-power and high-speed devices
Fiber port
One LC duplex single mode fiber optic port
Long Range
The fiber connection allows for long range distances up to 20km (12.41 mi.)
Outdoor Protection
This outdoor SFP+ media converter is IP67 rated for dust tight protection, and immersion in water up to 1m (3.28 ft.) for 30 minutes
Surge Protection
Provides up to 6kV RJ45 Ethernet surge protection
Extreme Temperature Range
An extreme operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with intense hot or cold conditions.
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
Pole Mount
The outdoor SFP+ media converter includes pole mount hardware
Grounding Point
The industrial PoE++ outdoor media converter features a grounding point to protect equipment from external electrical surges
- 1 x 10G LC duplex single mode fiber optic port
- 1 x 10G PoE++ RJ45 port
- Supports 1310nm single mode network transmissions up to 20km (12.42mi.)
- Waterproof IP67-rated metal housing
- Provides up to 95W for PoE, PoE+ and PoE++ compliant devices
- Extreme operating temperature range -40°- 75° C (-40° - 167° F)
- Includes pole mount hardware
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Power Consumption | 7.33 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of 100W PoE (RJ-45) Po | 1 |
| Network (RJ-45) | Yes |
| PoE Port Type | PSE |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 10 Gbit/s |
| Frequency | 60 Hz |
| Maximum Distance Supported | 20 km |
| Manufacturer | TRENDnet |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
