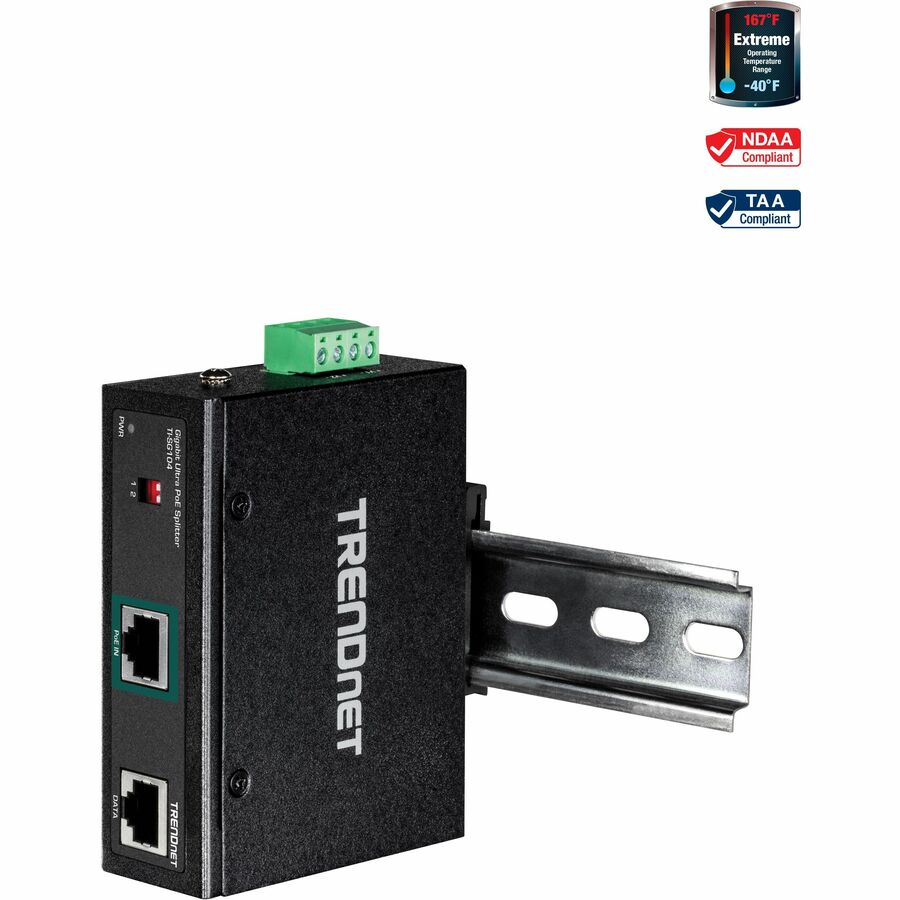

TRENDnet's Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter's dual DC power output provides greater device compatibility.
DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit PoE++ Port; 4-pin Removable Terminal Block (Dual DC Output); Adjustable output power DIP Switch (48V, 24V, 16V, 12V)
POE++ POWERED: No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.). ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.5A) to match non-PoE device power requirements. DUAL DC POWER OUTPUT TERMINAL BLOCK: The PoE++ splitter includes a dual DC power output terminal block, powering for up to two devices EXTREME OPERATING TEMPURATURE: Designed for industrial environments with a wide operating temperature range of -40° - 75° C (-40° - 167° F) WALL MOUNTABLE: The splitter comes with a wall mount kit that accommodates most installation scenariosDIN-RAIL MOUNTABLE: The PoE++ splitter comes with a DIN-Rail mount kit that fits a standard TS35 DIN-RailsPOWER: Input: 15.4W/30W/60W/90W PoE power; Max. consumption: 1W (splitter only) Max. combined DC Output: 48V (1.5A), 24V (2.3A), 16V (2.3A), 12V (2.3A) NDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer
