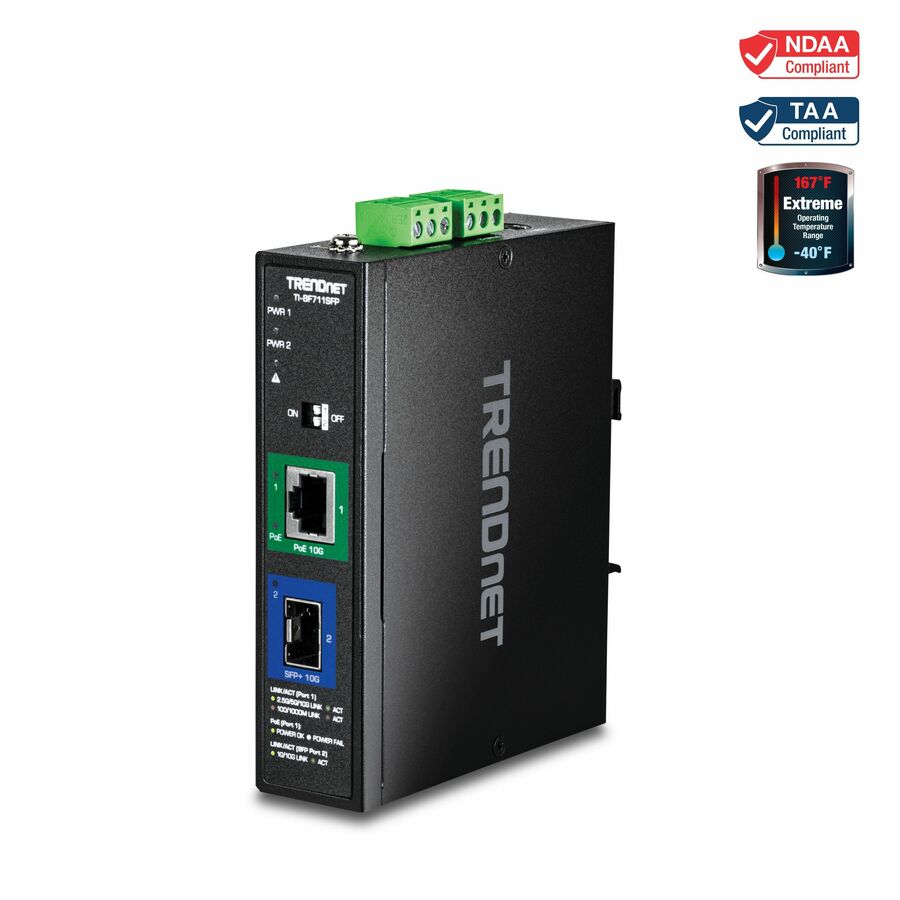

TRENDnet's Industrial 10G SFP+ to 10G PoE++ Media Converter, model TI-BF711SFP, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°- 75° C (-40° - 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter's rugged design also provides protection from shock, freefall, and vibration.
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, transportation, and corporate applications.
PoE++ Output
Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.
Industrial Environments
Hardened IP50 converter for industrial networking environments within a - 40°- 75° C (-40° - 167° F) operating temperature range.
FEATURES | 10G PoE++ Port
One 10G PoE++ Ethernet port for high-power and high-speed devices
Link Fault Pass Through
Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter
Surge Protection
Provides up to 6kV RJ45 Ethernet surge protection
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
10G SFP+ Port
One 10G SFP+ port for long distance applications
Dust Protected
This industrial switch is IP50 rated for ingress dust protection
Extreme Temperature Range
An extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions
DIN-Rail / Wall Mounts
The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware
Dip Switches
1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)
Fault Tolerance
Features an output alarm relay to indicate an input power failure
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)
Grounding Point
The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges
- 1 x 10G SFP+ port
- 1 x 10G PoE++ RJ-45 port
- Hardened IP50-rated metal housing
- Provides up to 95W for PoE, PoE+ and PoE++ compliant devices
- Extreme operating temperature range -40°- 75° C (-40° - 167° F)
- Overload current protection
- Includes DIN-Rail and wall mounts
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Terminal Block |
| Power Source | AC/DC |
| Power Consumption | 6.80 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 20 Gbit/s |
| Frequency | 60 Hz |
| Manufacturer | TRENDnet |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
