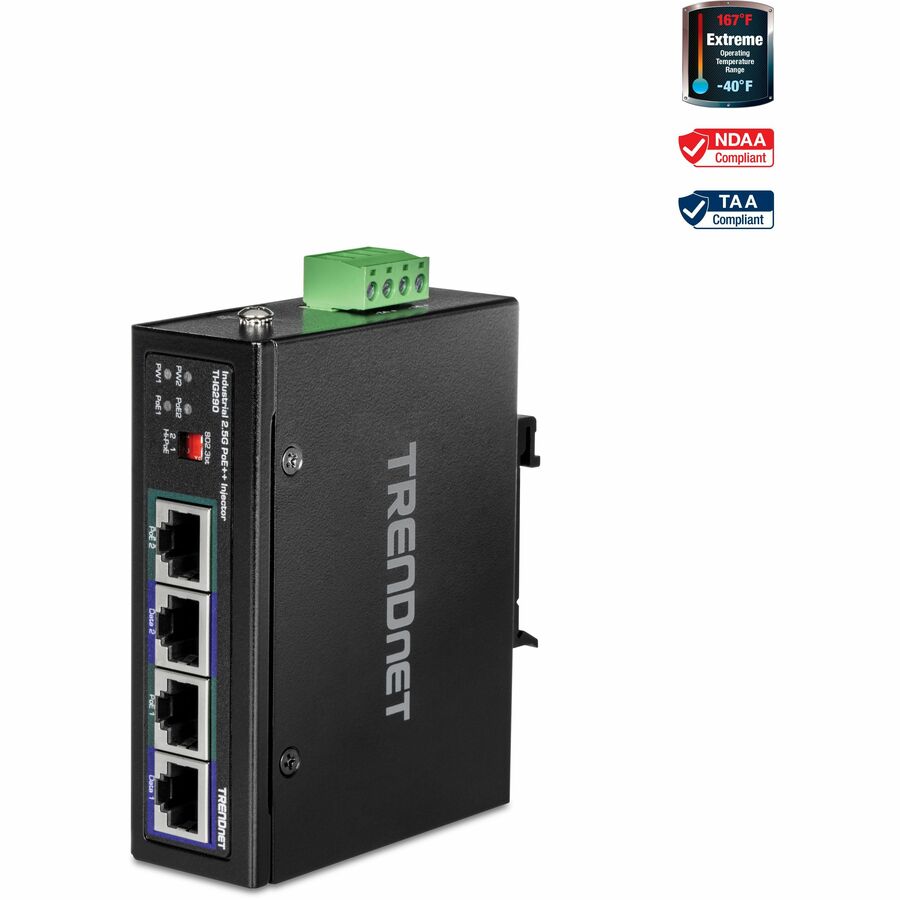

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70° C (-40° - 167° F) for harsh industrial environments.
- DEVICE INTERFACE: 2 x 2.5G ports (Data in); 2 x 2.5G PoE++ ports (Data + PoE out)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Injector, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-IG290, 90W 2-Port Industrial 2.5G PoE++ Injector is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- 2-PORT POE++: The Industrial 2-port PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), and PoE++ (IEEE 802.3bt) with a total PoE budget of 180W.
- 2.5G PORTS: The poe injector comes with two 2.5G ports (data in) and two 2.5G PoE++ ports (data + PoE out)
- INDUSTRIAL DESIGN: The 2-Port 2.5G PoE++ Injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 to 75 °C (-40 to 167 °F) for industrial environments.
- POWER SUPPLY SOLD SEPARATELY: Power supply sold separately (model TI-S24052, TI-S24048)
- DIN-RAIL MOUNT AND WALL MOUNT: Includes DIN-Rail mount and wall mount
- FANLESS DESIGN: Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data in)
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
- Redundant power inputs with overload current protection
- Includes DIN-Rail mount and wall mount
- Power supply sold separately (model TI-S24052, TI-S24048)
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Maximum Output Power | 180 W |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail/Wall Mountable |
| General Features | |
|---|---|
| Protection Type | Over Current |
| Manufacturer | TRENDnet |
| Misc Ports | |
|---|---|
| Output Ports | 2 x 2.5 Gigabit PoE++ |
| Input Ports | 2 x 2.5 Gigabit Ethernet |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
