- 5 x Fast Ethernet ports
- 1Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual inputs provide redundant power with overload current protection
- Power supply sold separately (model: TI-M6024)
- Fanless design for silent operation
- Lifetime Warranty

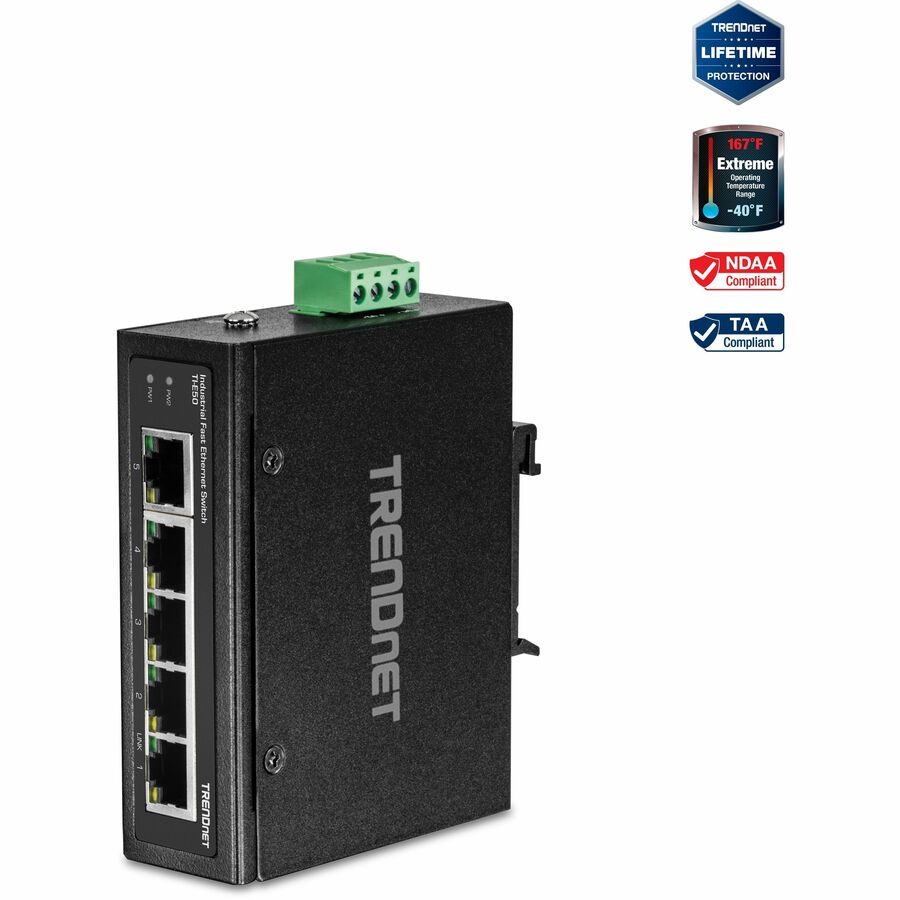

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
Redundant Power
The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F).
- Grounding Point: Grounding point on each industrial Ethernet switch designed to protect equipment from external electrical surges
- Electro Magnetic Compliance: Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV
- Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV
- Signal: 2kV, (61000-4-5) Surge: Power: 2kV
- Signal: 2kV
- Shock and Vibration Resistant: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- Wide Temperature Range: A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with extreme hot or cold conditions
- Redundant Power: Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)
- DIN-Rail / Wall Mounts: IP30 rated metal enclosure with DIN-Rail mount and wall mount hardware included
- Easy Installation: Industrial Ethernet switches feature a quick and easy installation process with an intuitive guided setu
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Terminal Block |
| Input Voltage | 56 V DC |
| Power Source | Power Supply |
| Power Consumption | 1.68 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 25 MB/s |
| MTBF | 580159 Hour |
| Manufacturer | TRENDnet |
| Product Condition | New |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
