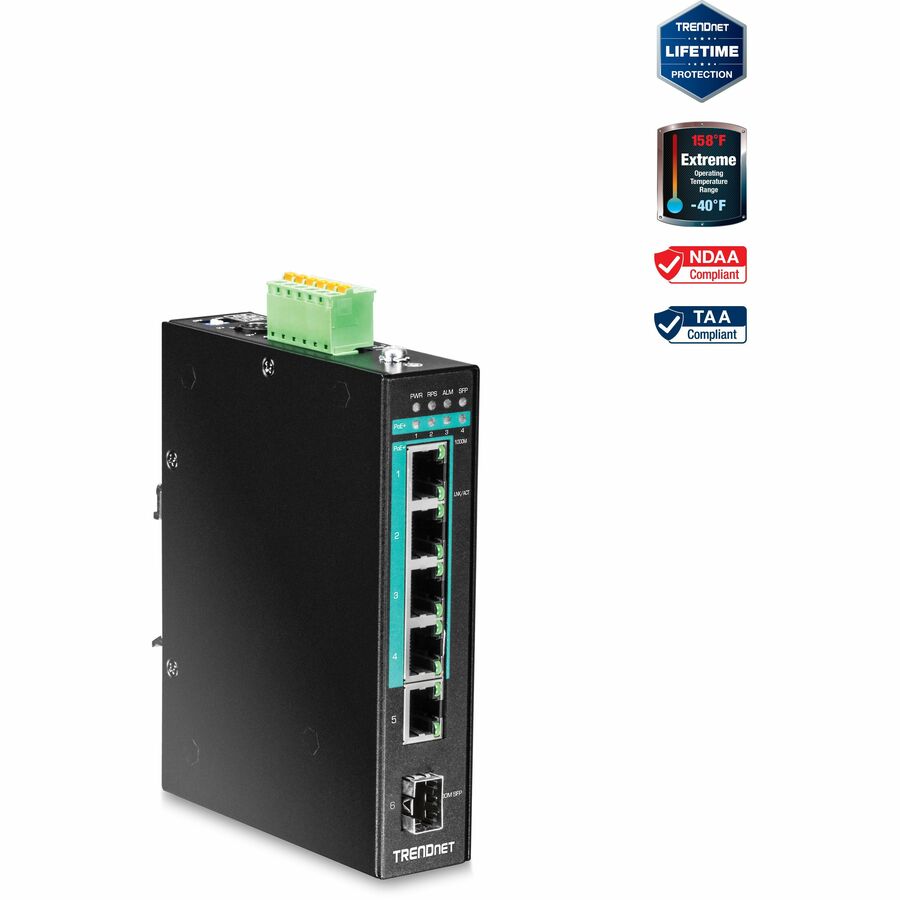

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and / or redundant power failure.
- ETHERNET PORT INTERFACE: 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
- FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The unmanaged PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget and allows for a 12 Gbps switching capacity.
- DIN-RAIL & WALL MOUNT KIT: This 5-Port gigabit PoE+ unmanaged switch comes with an integrated DIN-Rail mount and mounting hardware.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 167 °F) for harsh environments.
- REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Protection
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
- Dual redundant power inputs with overload current protection
- -40 to 70 �C (-40 to 158 �F) operating temperature range
- 12 Gbps switching capacity
- Hardened IP30 rated metal switch with integrated DIN-Rail mount
- 120 W full PoE+ power budget
- 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| LRE Port | No |
| Total Number of Network Ports | 6 |
| PoE (RJ-45) Port | No |
| Number of PoE+ (RJ-45) Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | TRENDnet |
| Product Condition | New |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Bypass | No |
TRENDnet 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 120W Power Budget, 1 x SFP Slot, IP30 Rated, Unmanaged Switch, Gigabit PoE+ Network Switch, Lifetime Protection, Black, TI-PG541 - 5-port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
