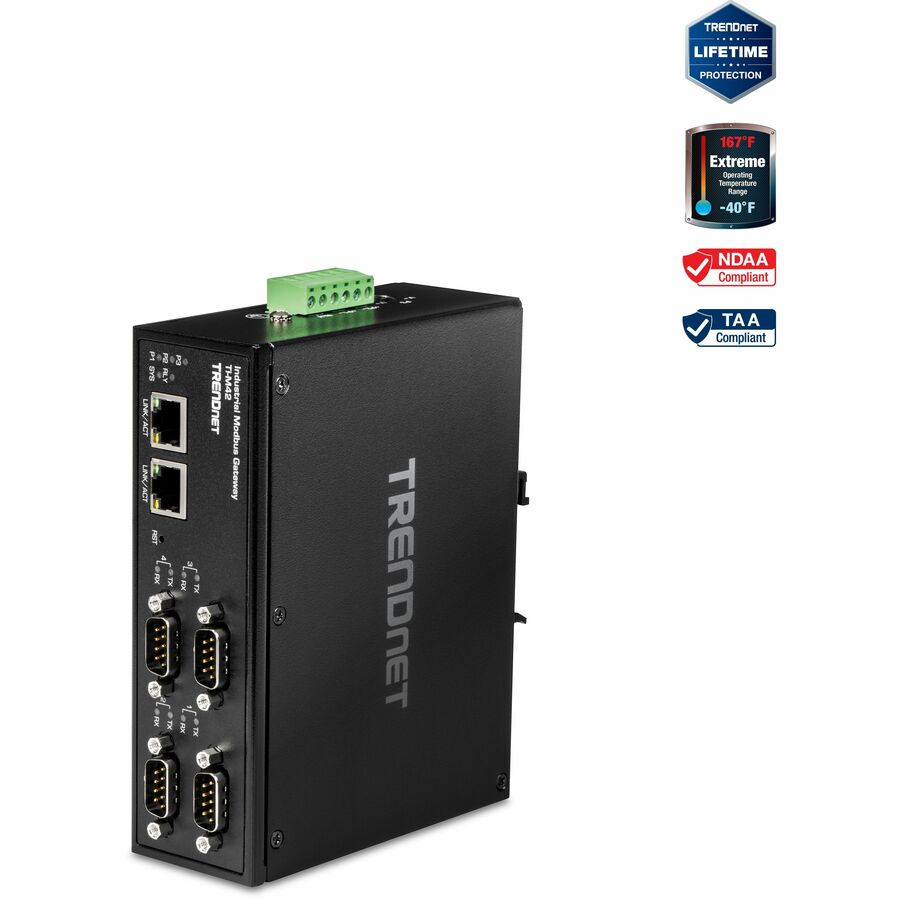

TRENDnet 4-Port Fast Ethernet Industrial Modbus Gateway, 4 x Serial DB-9 Ports, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M42

$ 454.49 $ 454.49
$ 454.49

$ 454.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network (RJ-45)
  • Plug/Connector Type
  • Serial Port
  • Number of Serial Ports
  • Form Factor
  • Ethernet Technology
  • Network Standard
  • Media Type Supported
  • Input Voltage Range
  • Input Voltage
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

TRENDnet's Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial gateway allows users to connect four modbus serial devices to a network.

  • DEVICE INTERFACE: 4 x Serial (DB-9) ports; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal blocks; LED indicators; DIN-Rail mount; Wall mount; Grounding point
  • CONNECT FOUR SERIAL DEVICES: The 4-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect four serial devices to a network.
  • MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
  • IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F)
  • DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
  • Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  • NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

  • Connects RS-232/RS-422/RS-485 serial devices to a network
  • Supports up to 32 RS-422/RS-485 TCP serial devices per port, up to 128 slave devices per unit
  • Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  • Configure via web management or telnet
  • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
  • Serial port baud rate from 50bps to 921.6Kbps
  • IP30 rated metal housing
  • NDAA / TAA compliant
  • Lifetime Warranty
Brand
Brand TRENDnet
Power & Battery
Plug/Connector Type Terminal Block
Input Voltage Range 12V DC to 56V DC
Input Voltage 56 V DC
Power Consumption 3.84 W
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Manufacturer TRENDnet
Misc Ports
Serial Port Yes
Number of Serial Ports 4
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
