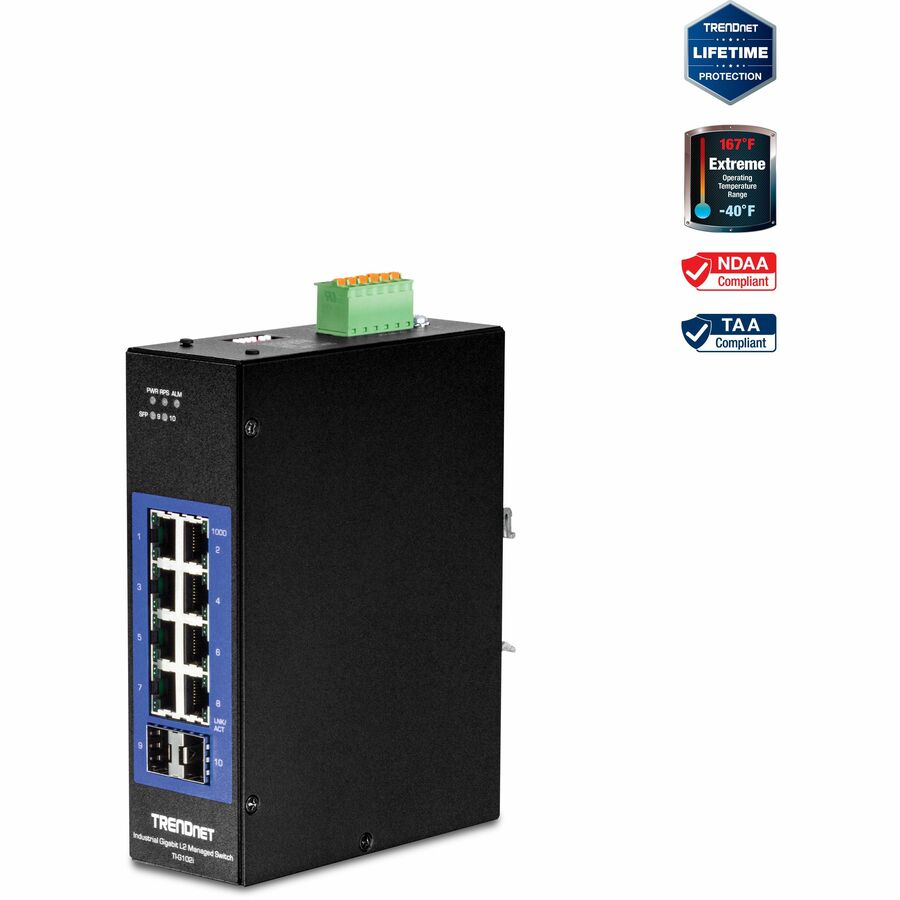

TRENDnet's Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.
These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.
- NETWORK PORTS: 8 x Gigabit ports, 2 x SFP slots, 20Gbps switching capacity
- LIFETIME PROTECTION -We stand by the quality of our products. The TI-G102i 10-Port Industrial Gigabit L2 Managed DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- POWER SUPPLY SOLD SEPARATELY: Power supply sold separately (model: TI-M6024)
- TRAFFIC MANAGEMENT: Layer 2 Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration
- ACCESS CONTROL: Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provide the industrial layer 2 managed switches with layered network access controls
- WIDE TEMPERATURE RANGE: Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- SYSTEM MONITORING: Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI
- ALARM RELAY:Alarm relay output triggered by power failure of primary and / or redundant power to the industrial layer 2 managed switch
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty
- Supports Ethernet Ring Protection Switching (ERPSv2)
- Power supply sold separately (model: TI-M6024)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- IEEE 802.1p QoS with queue scheduling support
- Bandwidth control per port
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- Includes DIN-rail mounting bracket
- Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- Hardened IP30 rated metal housing
- 20Gbps switching capacity
- 8 x Gigabit ports
- 2 x SFP slots
- Supports 100/1000Base-FX fiber SFP modules
| Brand | |
|---|---|
| Brand | TRENDnet |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-FX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | TRENDnet |
| Product Condition | New |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
