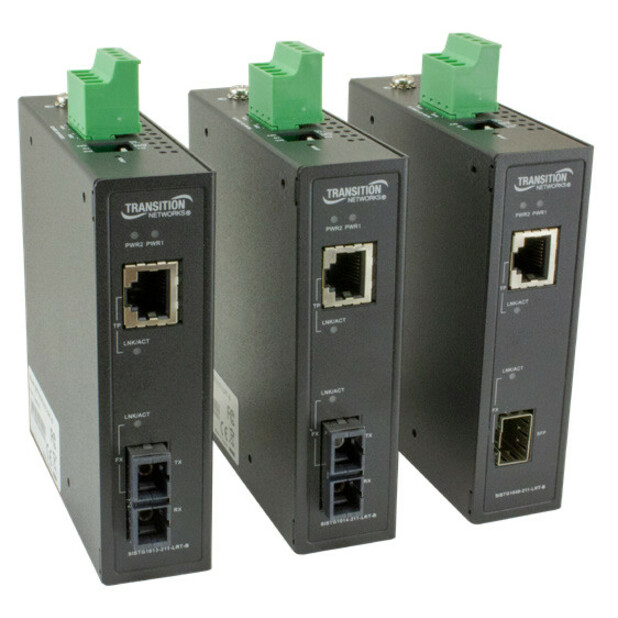

The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
- DIN Rail Mounting Brackets Included
- Overload Current Protection
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Auto-Negotiation
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 10 km |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
