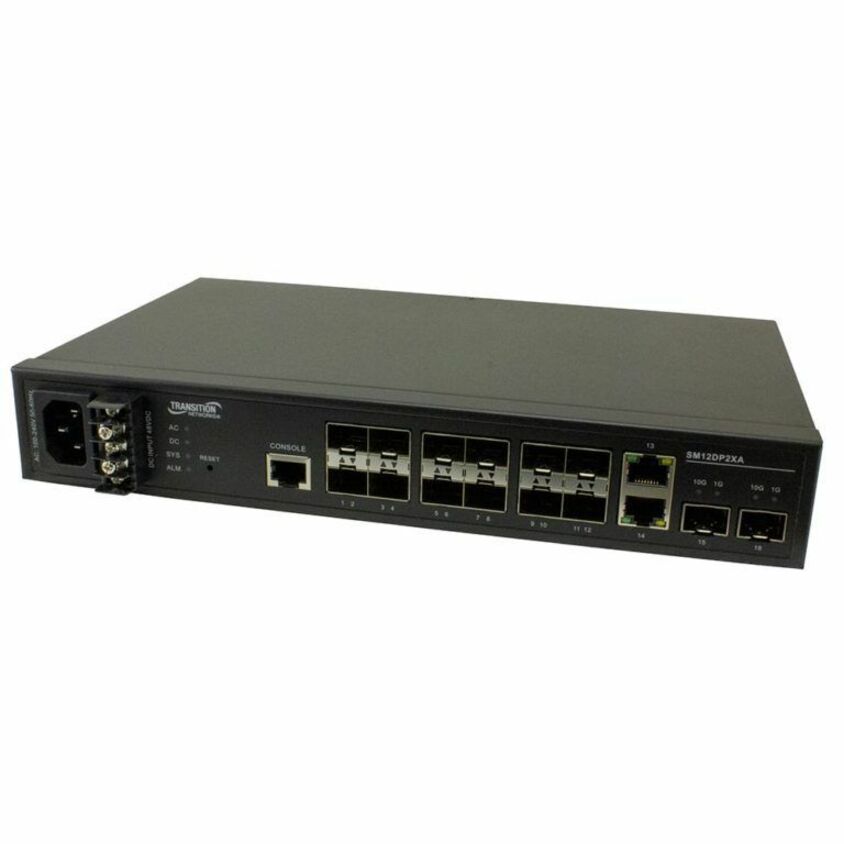

Transition Networks SM12DP2XA Ethernet Switch

$ 694.99 $ 694.99
$ 694.99

$ 694.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Stack Port
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Ethernet Technology
  • Networking Standards
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Managed Gigabit Ethernet Fiber Switch

(12) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots + (2) 10/100/1000Base-T RJ-45 Ports

This switch is a next generation fully managed fiber switch with 68Gbps switching capacity. It provides (12) 100/1000 dual speed SFP slots, (2) 1G/10G SFP+ slots and (2) additional Gigabit RJ-45 ports.

  • IPv6 Management
  • Support Jumbo Frame up to 9K bytes
  • Authentication - RADIUS, TACACS+
  • IEEE 802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • DHCP Relay, DHCP Option 82, DHCP Snooping, DHCP Server
  • L2/L3/L4 ACLs Support MAC, VLAN ID or IP, protocol, port, DSCP/IP precedence/TCP.UDP, Ether Type, ICMP, TCP flag
  • LLDP (Link Layer Discovery Protocol)
  • IEEE 802.3az Energy Efficiency
  • IP Source Guard, Port Security
  • Port Mirroring
  • Firmware Update through TFTP/ HTTP and console
  • Syslog
Brand
Brand Lantronix
Power & Battery
Input Voltage 24 V DC
Power Source DC
Power Consumption 24 W
Networking & Connectivity
Network Technology 10/100/1000Base-TX
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 2
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Lantronix, Inc
Expansion Slots
Total Number of Expansion Slots 14
Expansion Slot Type SFP+
Number of SFP Slots 12
Shared SFP Slot No
Misc Ports
Stack Port No
Port/Expansion Slot Details 2 Gigabit Ethernet Network
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
