The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. NDAA Compliant, TAA Compliant
- Automatic Link Restoration
- Pause
- Remote Fault Detect
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Auto-MDI/MDIX
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 5.40 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-LX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 10 km |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | SGETF1014-110 Gigabit Ethernet Media Converter |

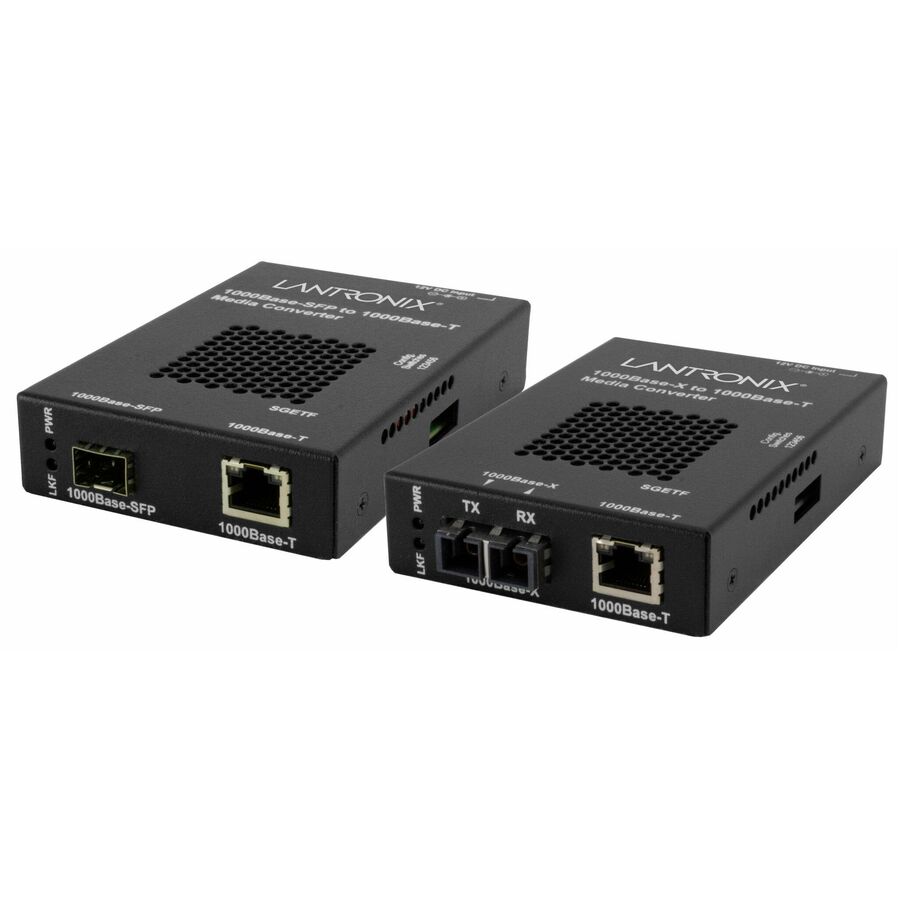

Transition Networks SGETF1014-110 Gigabit Ethernet Media Converter - 1 x RJ-45 , 1 x SC - 1000Base-T, 1000Base-LX - Wall-mountable
