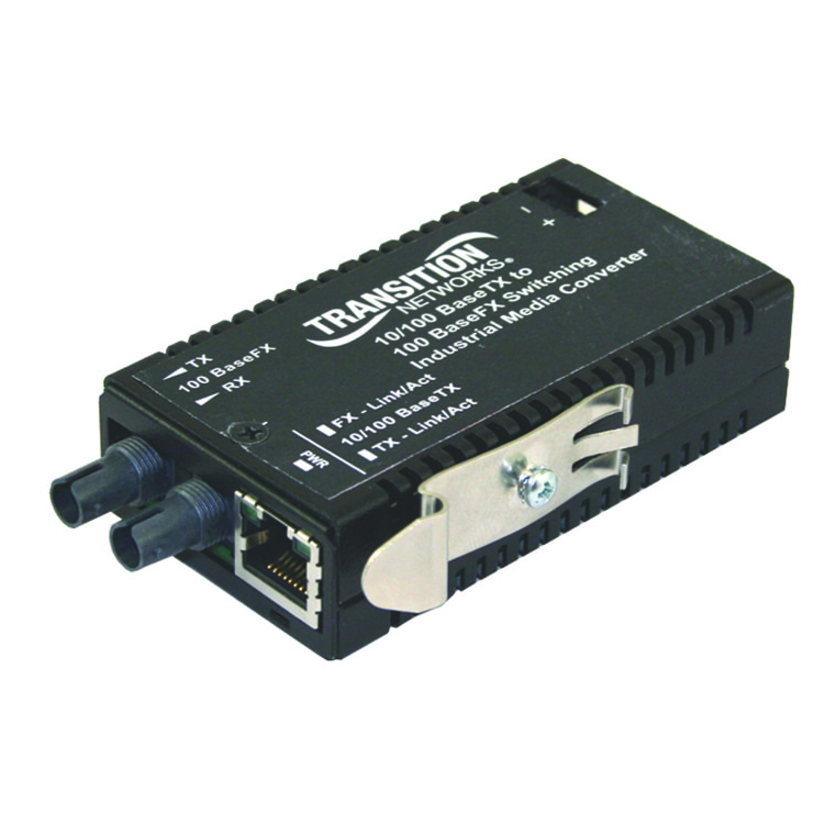

The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
- Includes barrel connector pig-tail cable
- Far-End-Fault (FEF)
- DC and AC power inputs via terminal block
- Active Link Pass Through on SFP version
- Automatic Link Restoration
- Auto-MDI/MDIX
- Link Pass Through
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Unit and Port LEDs provide quick status
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 2 km |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Transition Networks M/E-ISW Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 km - Power Supply - Rail-mountable, Wall Mountable
