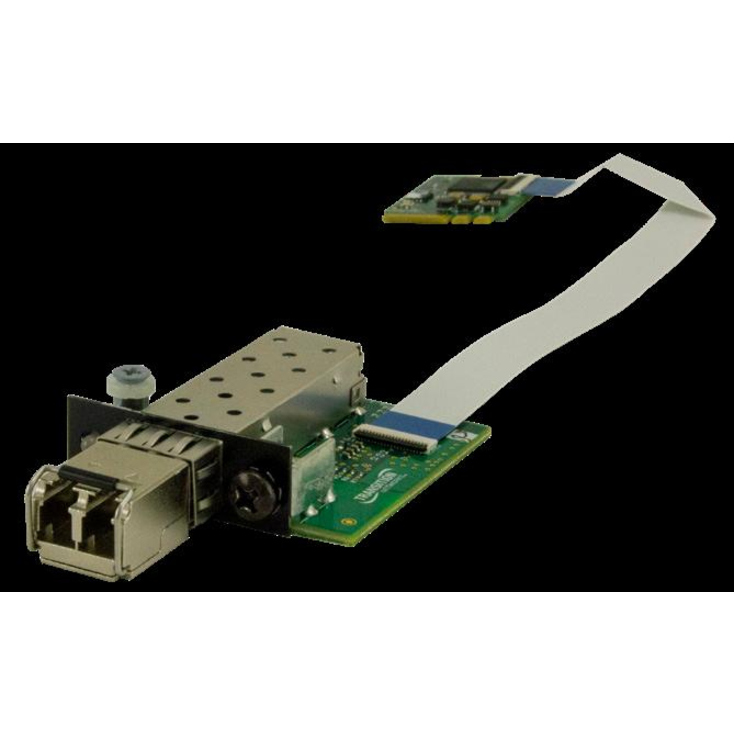

Transition Networks M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7060, 5060, and 3060 Micro PCs. The NM2-FXS-2230-SFP-201 consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "E key" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).
- Jumbo frame support 9014 bytes
- 100Base-FX to SGMII SFP interface
- Supports UEFI
- Supports PXE boot
- Full duplex
- IPv6 Capable
- A + E keyed M.2 interface
- PCI Express M.2 compliant
| Brand | |
|---|---|
| Brand | Transition Networks |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | M.2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
