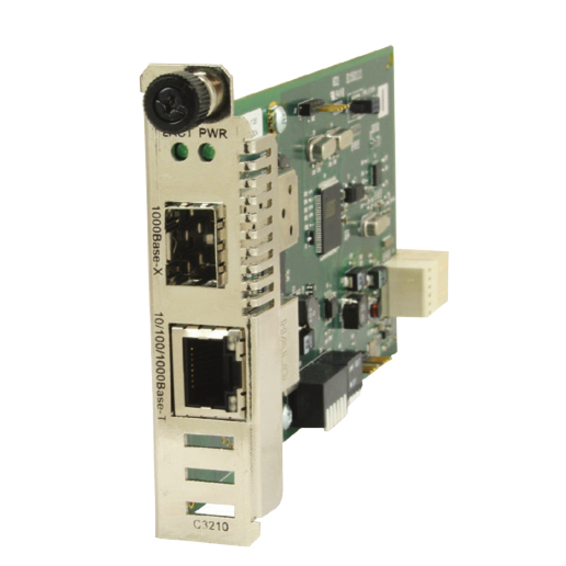

The ION C3210 device provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports allowing users to integrate fiber optic cabling into 10/100/1000Base-T copper environments.
Operating at Layer 2, this converter not only converts copper to fiber, it also does Rate conversion, converting 10/100/1000Base-T copper to 1000Base fiber.
Applications include: integrate fiber into copper based networking environments and bridging legacy 10/100 devices into a Gigabit Backbone.
- Field Upgradeable Firmware
- IEEE 802.1P QoS, IPv4 TOS/DiffServ, IPv6 traffic class
- IEEE 802.1q Port VLAN, tagging and doubling tagging (Q in Q)
- Pause
- Automatic Link Restoration
- Link Pass Through
- Remote Fault Detect
- Switch Selectable Speeds
- Auto-MDI/MDIX
- Copper and Fiber Auto-Negotiation
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
