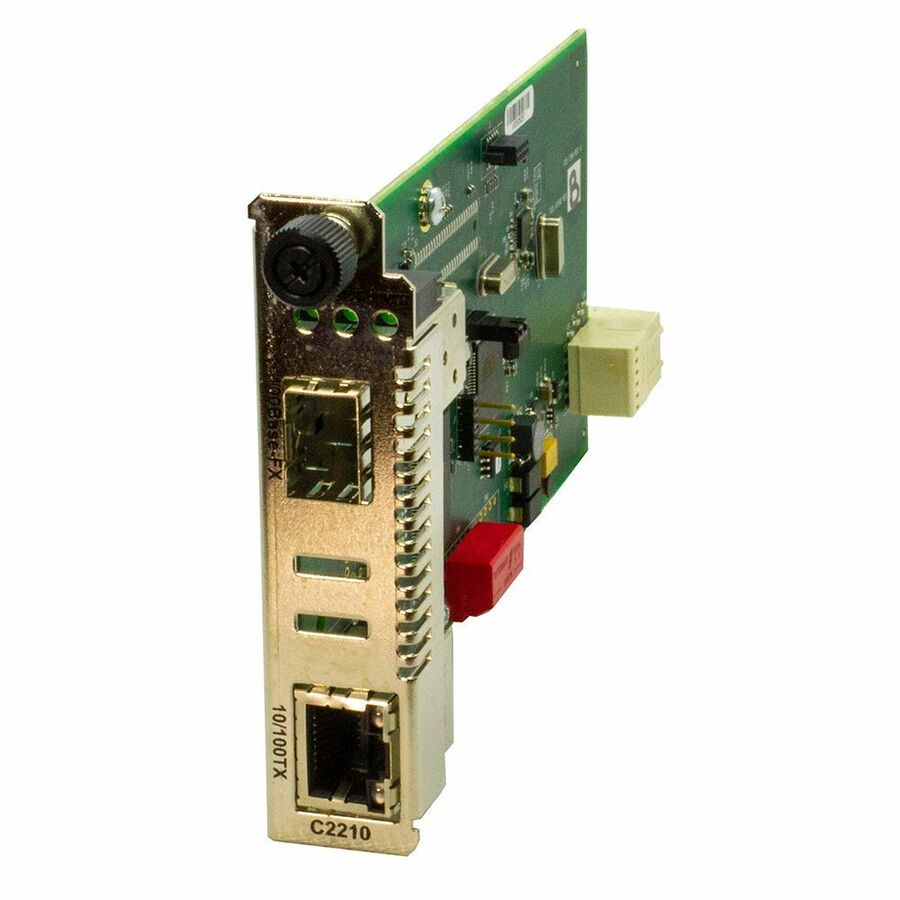

The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The ION C2210 is a manageable device when installed in a managed ION chassis.
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT)
- Far-End-Fault (FEF) detection
- Pause (Software Controlled)
- Automatic Link Restoration
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 10/100Base-TX and any standard 100Base-FX ports
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 2.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-BX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.10 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
