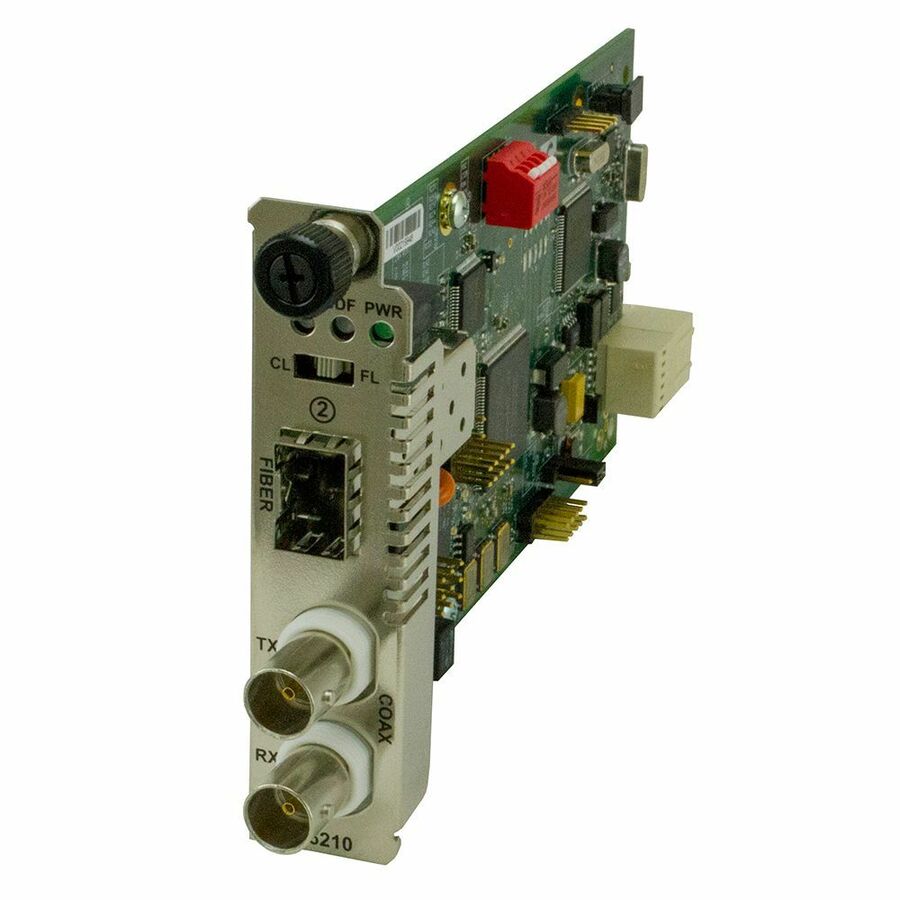

The ION C6210 is a managed media converter module that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The C6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The C6210 DS3-T3/E3 converters must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.
- AIS (Alarm Indication Signal)
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback - Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Consumption | 2.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-X/OC-3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Module |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Coaxial |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
