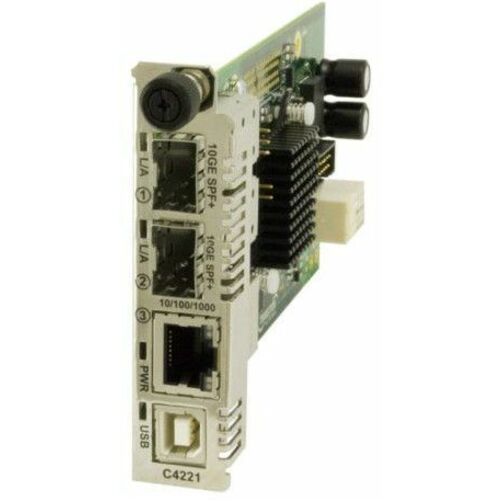

The ION C4221 Network Interface Device (NID) is a remotely managed product that offers management via the ION Management Module for secure delivery of Ethernet services for business and mobile backhaul applications. The C4221 is a 10 Gig product with advanced features like remote management of the local and remote cards, VLAN, jumbo frame support, and bandwidth allocation of 10 Gig interfaces. The C4221 offers the additional functionality of a rate converter by also offering a 10/100/1000Base-T RJ-45 port allowing 10/100/1000 based devices to connect to 10 Gigabit Ethernet fiber backbone.
- Full non-blocking switching on all interfaces
- (2) 10 Gig SFP+ ports supporting 100FX, 1000X, SGMII, and 10 Gig
- SFP ports individually support same or different speeds simultaneously
- (1) 10/100/1000Base-T port
- Local and remote units can be fully managed by the ION platform
- IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification via IONMM
- Bandwidth Allocation, per port, from 1 Gig to 10 Gig in 1 Gig increments
- Basic VLAN support
- Jumbo frame support, up to 10,240 bytes
- 16K maximum MAC Addresses
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 6.24 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
