The ION C3210 is a media converter module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. The ION C3210 is a manageable device when installed in a managed ION chassis.
- Copper and Fiber Auto-Negotiation
- Switch Selectable Speeds
- Auto-MDI/MDIX
- Link Pass Through
- Remote Fault Detect
- Pause
- Automatic Link Restoration
- IEEE 802.1p QoS, IPv4 TOS/DiffServ, IPv6 traffic class
- IEEE 802.1Q Port VLAN, tagging and doubling tagging (Q in Q)
- Field Upgradeable Firmware
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 3.60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-LX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 10 km |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Miscellaneous | |
|---|---|
| Product Name | ION C3210-1014 Transceiver/Media Converter |

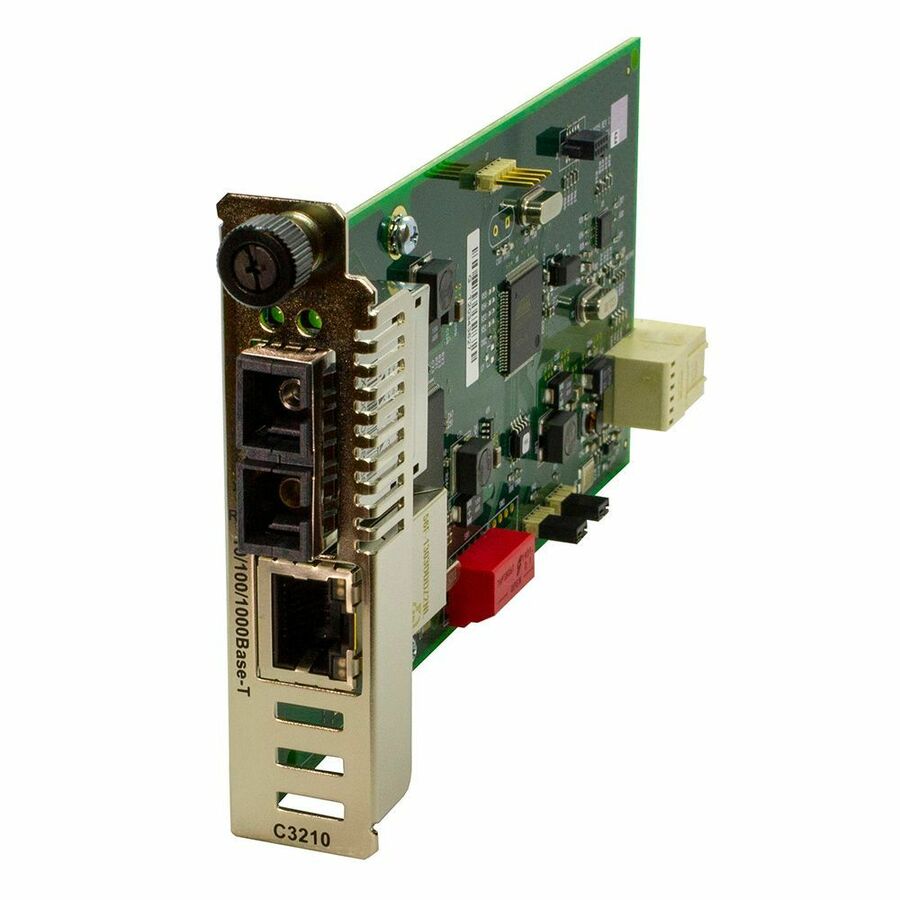

Transition Networks C3210-1014 Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T, 1000Base-LX - 10 km - Internal
