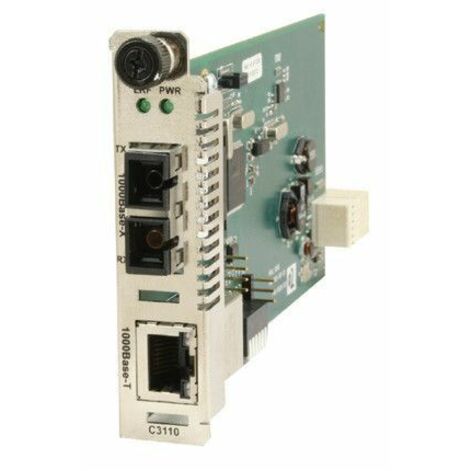

The ION C3110 is a media converter module that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments.
Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. The ION C3110 is a manageable device when installed in a managed ION chassis.
- Copper and Fiber Auto-Negotiation
- Auto-MDI/MDIX on TP port
- Transparent Link Pass Through
- Remote Fault Detect
- Loopback
- Pause
- Automatic Link Restoration
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Cost effective fiber deployment by pairing C3110 with lower cost 1000Base-T switches, offering the benefits of fiber without the high costs
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Power Consumption | 3.60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
