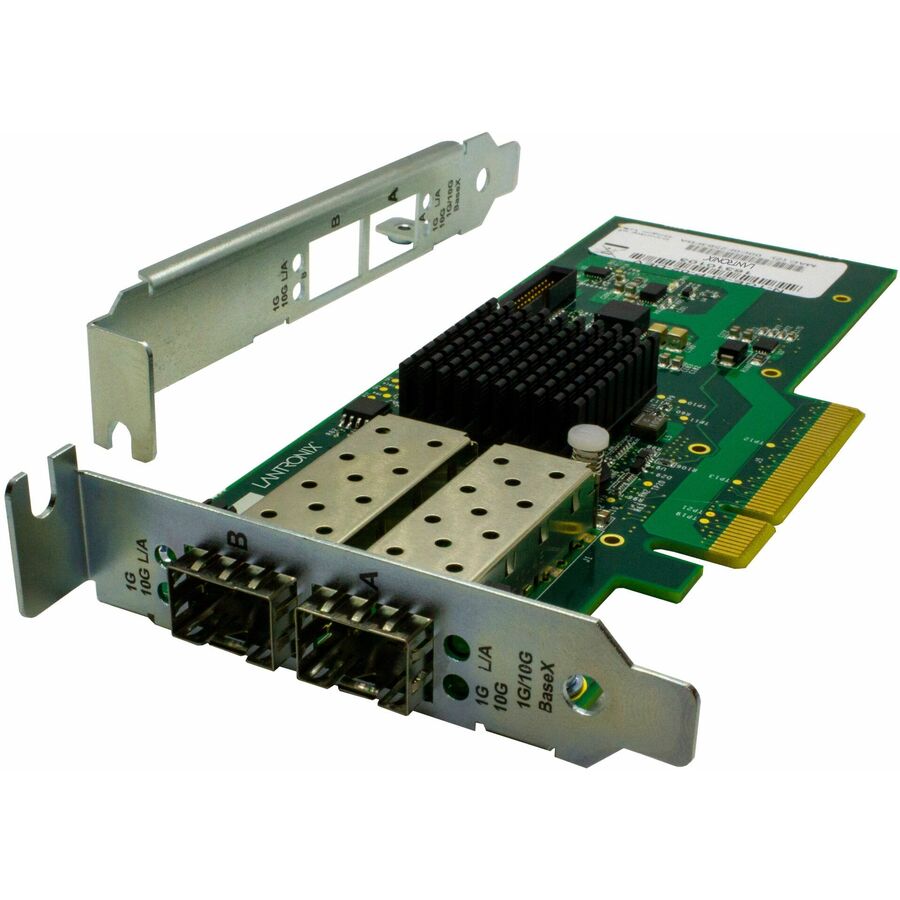

The N-TGE-SFP-02 is a Fiber 10Gigabit Ethernet to PCIe bus adapter that supports a 1Gbps/10Gbps link and fully complies with IEEE 802.z and 802.3ae standards. The open SFP slots can be used with 1000Base-X SFPs or 10GBase-SR/LR SFP+ modules. The NIC provides up to 20 Gbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation and smart load balancing, the adapter providesenhanced performance, flexible configuration and secure networking for users in a standard-based environment. The NIC is suitable for high resolution or high speed data transfer, fiber-to-the-desk, data center, SMB and cloud computing applications. Two LED indicators (LINK/ACT and SPEED) per port on the bracket will help to oversee the board link, activity status and connection speed.
- High bandwidth 10Gbps network speed
- Supports 1Gbps SFPs with DMI
- Supports IEEE 802.3x Full-Duplex flow control
- IPv4 and IPv6
- Compliant with PCIe 3.0�8 interface
- Supports Jumbo Frames - 9014 and 4088 byte options in Windows>Advanced Properties tab
- Supported transmission distance based on the SFP/SFP+ modules and fiber type used (1Gbps SFP modules must support DMI)
- Supports IEEE 802.3ad Link Aggregation (LACP)
- IEEE 802.1Q VLAN support
- IEEE 802.1p QoS
| Brand | |
|---|---|
| Brand | Lantronix |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-SR/LR |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Bracket Height | Low Profile |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP+ |
| Expansion Slot Details | 2 x 10GBase-SR/LR Expansion Slot |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
