ION DS1 - T1/E1 Network Interface Device Module | DS1 - T1/E1 over Fiber

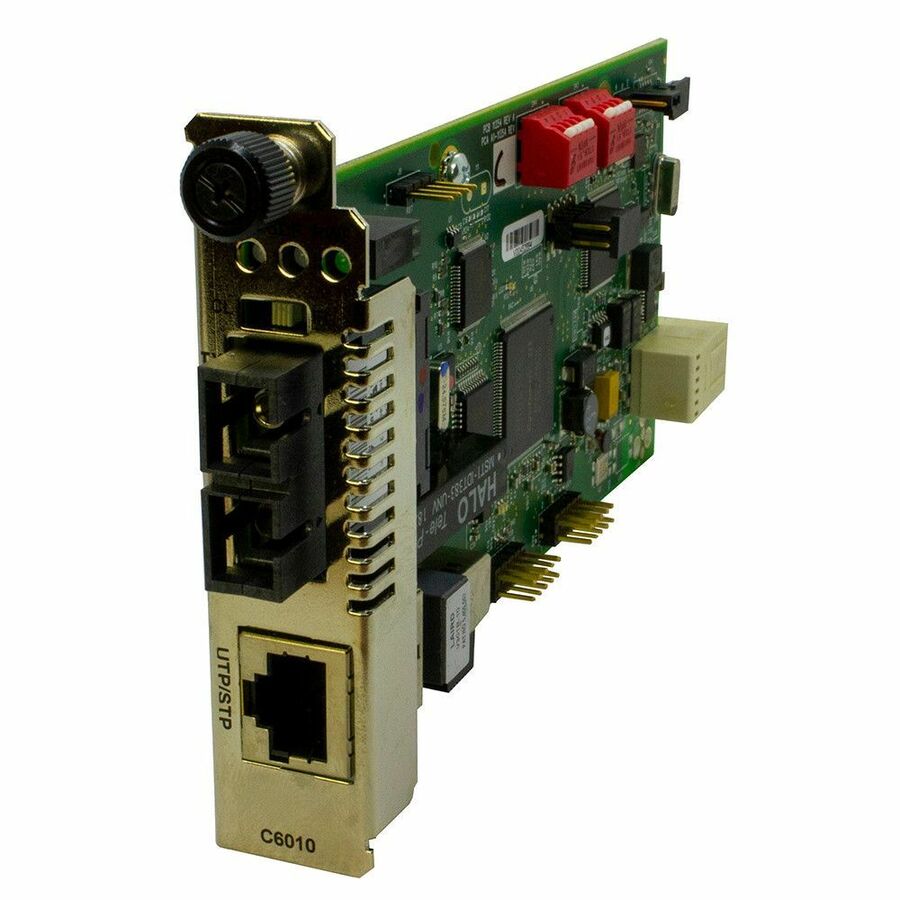

? The ION C6010 is a managed media converter that offers a solution for extending T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These T1/E1 converters must be used in pairs, one on each end of the fiber link. Typical installations include a chassis card installed in a centrally located managed ION chassis, linked over fiber to a S6010 stand-alone converter at the remote location. The T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
- Remote in-band management
- Local or Remote Loopbacks - Copper or Fiber
- Switch selectable for T1 or E1
- Remote firmware upgrade
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local peer
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Consumption | 2.60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | T1/E1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Standalone |
| General Features | |
|---|---|
| Maximum Distance Supported | 1.50 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
