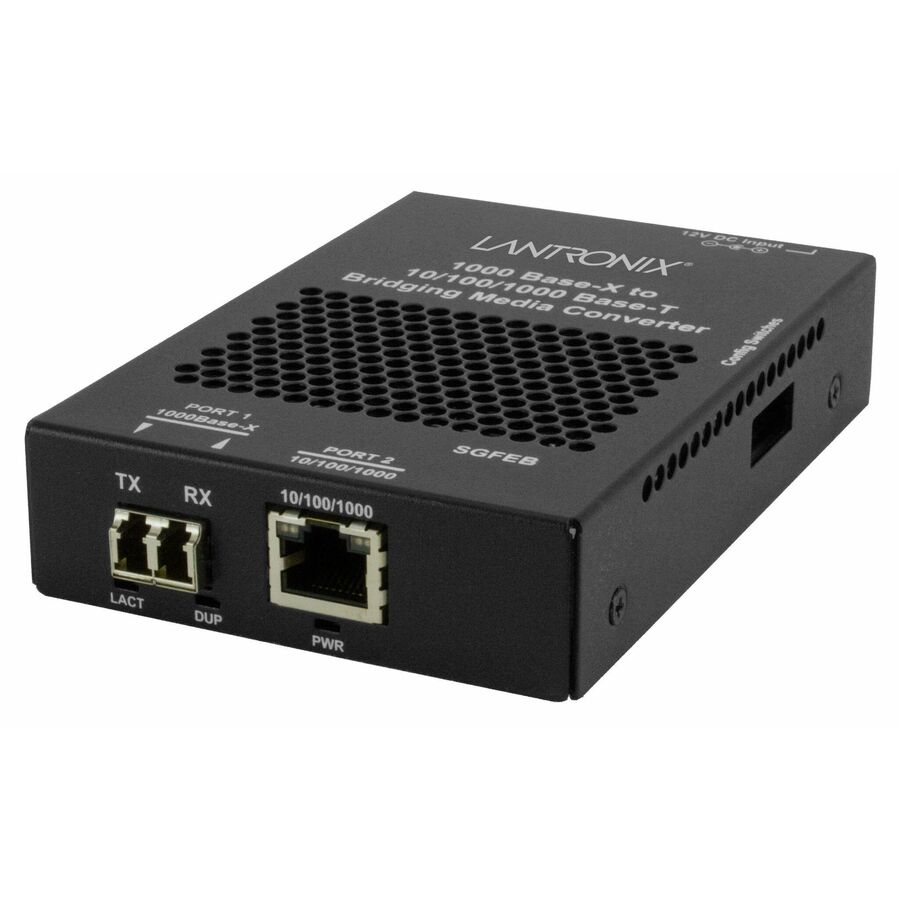

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Input Voltage | 24 V DC |
| Power Source | AC Adapter |
| Power Consumption | 2.20 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Standalone |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.55 km |
| Manufacturer | Lantronix, Inc |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Number of LC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm , 62.5/125 µm |
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
Transition Networks 10/100/1000 Ethernet Media Converter Stand-Alone - 1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 0.22 km - AC Adapter - Rack-mountable, Wall Mountable, Rail-mountable, Desktop
