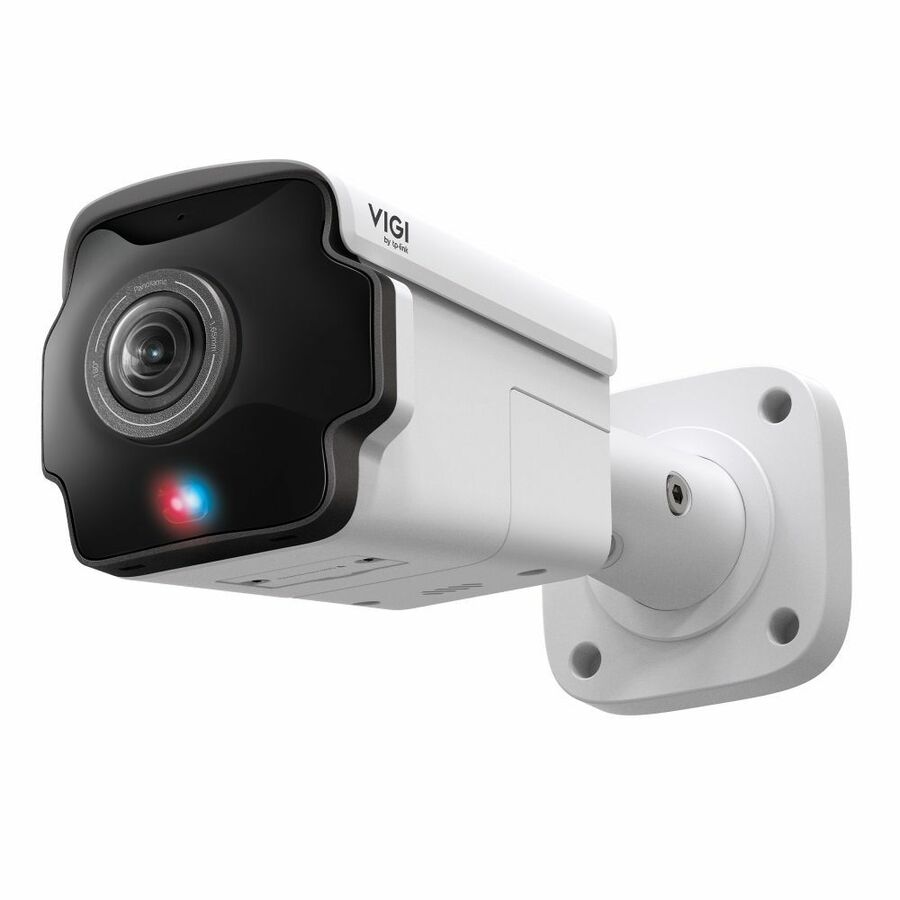

Cut Project Costs with 180° View and 4K (8MP) Clarity
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.
Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.
Red-Blue Warning Lights with Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.
Flexible Audio & Alarm Integration
The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.
Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone
VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1
- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics*2
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Maximum Power Consumption | 21 W |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Protocols | API |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Wide Dynamic Range Detail | 120 dB |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 8 Megapixel |
| Maximum Video Resolution | 3840 x 2160 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 1.65 mm |
| Maximum Aperture | f/2.0 |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Lens Type | Fixed |
| Recording Formats | 4K |
| Night Vision Distance | 65.62 ft |
| Number of IR LEDs | 4 |
| Maximum Frame Rate | 30 fps |
| Image Sensor Size | 1/2.7" |
| Lens Mount Type | M12-mount |
| Field of View | Horizontal FOV: 180° ? Vertical FOV: 86° ? Diagonal FOV: 180° |
| Audio | |
|---|---|
| Audio Support | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Bullet |
| Mount Type | Pole Mount |
| General Features | |
|---|---|
| AI-powered | Yes |
| Remote Management | Yes |
| Durability | Vandal Proof |
| Indoor/Outdoor | Outdoor |
| Video Formats | H.265M |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Compliance & Certification | |
|---|---|
| Maximum Operating Humidity (N | 95% |
| Maximum Storage Humidity (Non | 95% |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Ingress Protection Rating | IP67 |
| Impact Protection Rating | IK10 |
