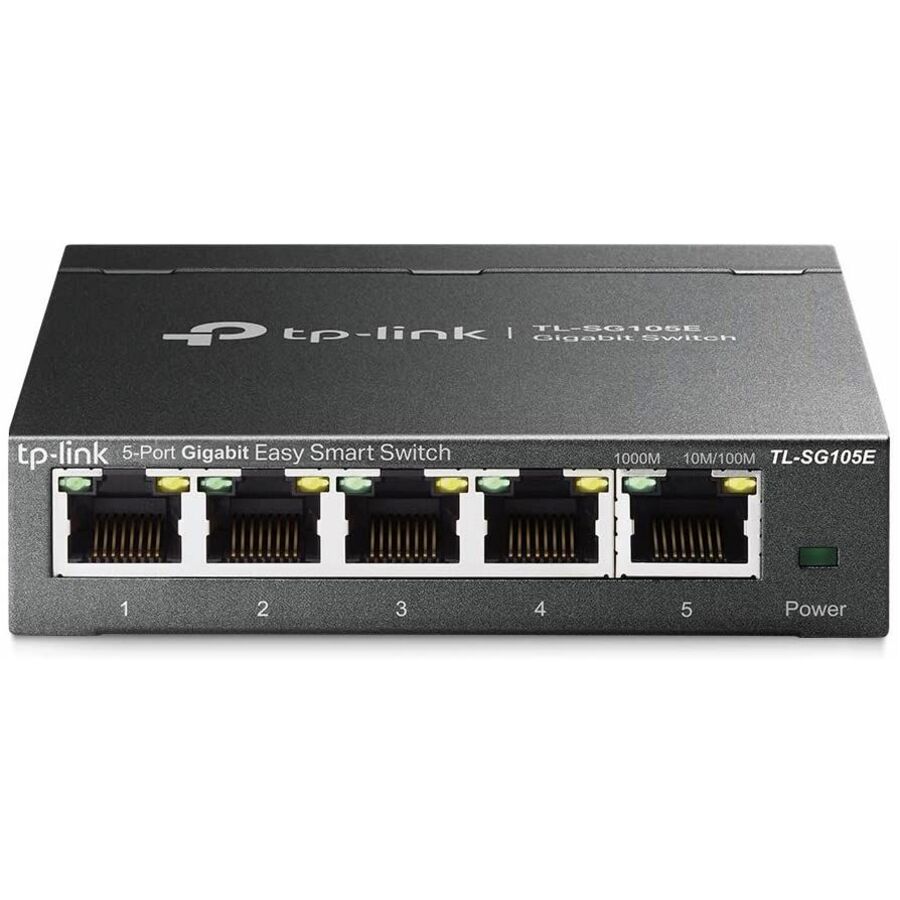

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.
- Port and tag-based QoS enable smooth latency-sensitive traffic
- System Ram Type: ddr3_sdram
- Igmp snooping optimizes multicast applications
- Abundant VLAN features improve network security via traffic segmentation
- Effective network monitoring via port mirroring, loop prevention and cable Diagnostics
- 15K jumbo frame improves performance of large data transfers
- 5-Gigabit ports provide instant large file transfers
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Power Consumption | 2.70 W |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 5 |
| LRE Port | No |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | No |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Bypass | No |
