What This Product Does

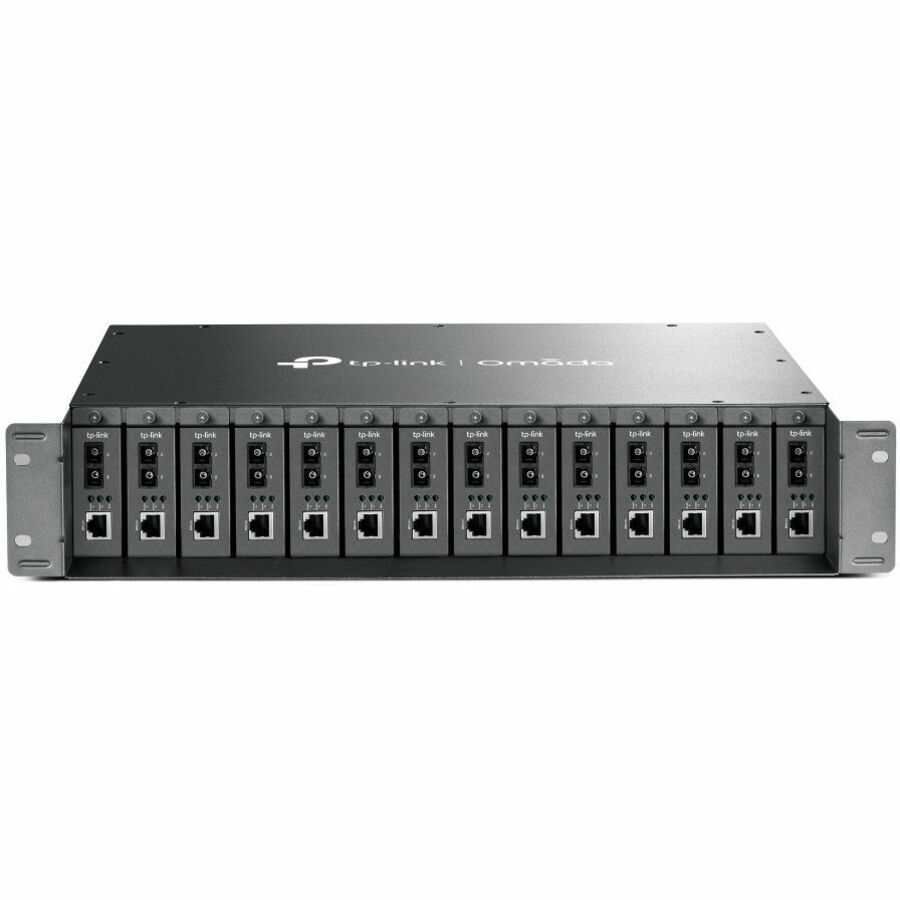

The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.
- Mounted two cooling fans for better ventilation
- 2U 19-inch rack-mountable
- Hot-swappable
- Optional redundant power supply to ensure non-stop reliable operation
- 14 bays to house up to 14 media converters
- 9 VDC / 0.6 A power output
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| General Features | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 14 |
