What This Product Does
AP9670, the Omada Pro AX5400 Ceiling Mount WiFi 6 Access Point, provides overall 5378 Mbps speeds with WiFi 6 technologies, such as HE160, 1024 QAM, Long OFDM Symbol, and more. A built-in 2.5G Ethernet port ensures high network throughput. PoE+ supported also provides flexible installations.
Integrated into the Omada Software Defined Networking (SDN) solution, AP9670 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.
Enterprise-Grade WiFi 6 Speed and Connectivity
- Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5. 1024 QAM ensures 25% more data encoded at one time. Long OFDM Symbol helps 11% faster WiFi speed. HE160 doubles the data at peak transmission times on a single stream.
- Higher Efficiency for More Devices
Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. Enjoy faster speeds on more devices with less lag.
Boosted Network Security and Efficiency
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9670 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.
Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Band Steering automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks. Airtime Fairness increases average network throughput in heavily congested environments.
Cloud Centralized Management
The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in hotels, education, retail, offices, and more. Zero-Touch Provisioning allows admins to remotely deploy and configure multi-site networks, so there's no need to send out an engineer for on-site configuration.
Easy Deployment

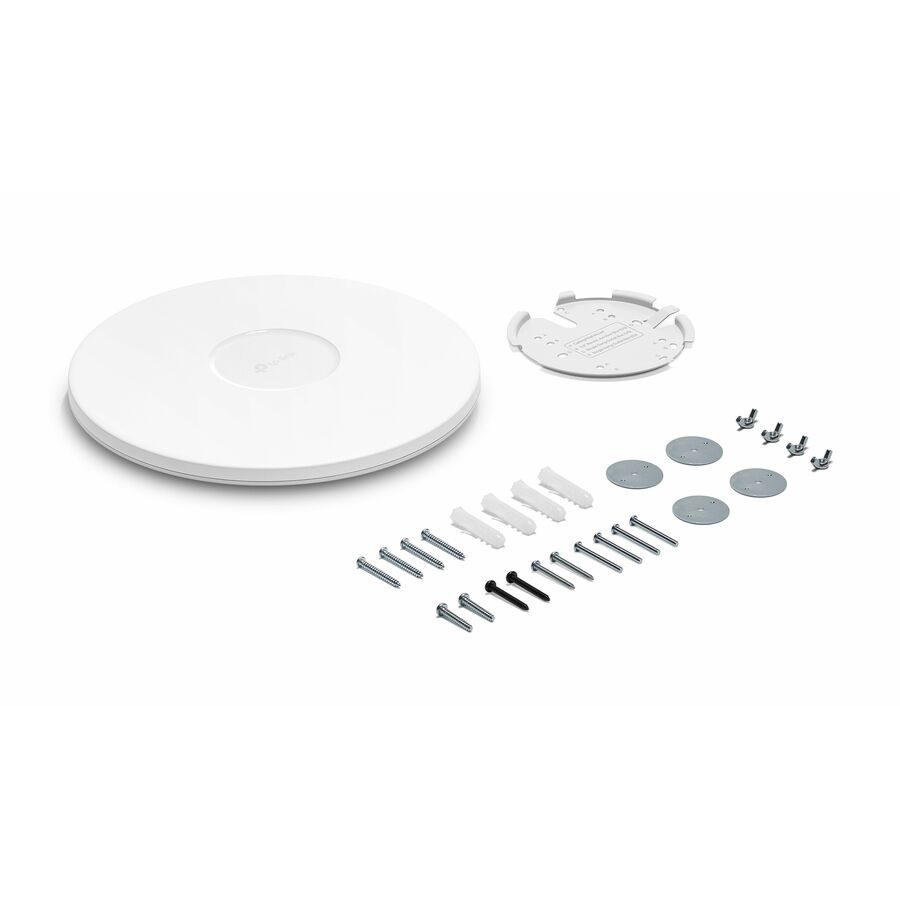

Intelligent software and quality hardware designs together lead to simple deployment. With Automated Radio Frequency Deployment, AP9670 efficiently optimizes RF deployment by scanning the surrounding area 24/7, improving the performance and quality of wireless networks. With Omada Mesh?AP9670 saves you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. And intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Additionally, supporting DC, 802.3at PoE+, and passive PoE, flexible product installation is at your fingertips. With the compact case design, AP9670 can be installed in 2 steps: simply push and rotate.
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 3.47 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability
- IEEE 802.11 a/b/g/n/ac/ax wireless LAN standard offers a reliable, convenient way of communication
- Up to 10x faster than standard Ethernet connectivity for your wired network
- Data Encryption provides reliable and enhanced data security and management
- Internal antenna form factor for reliable connectivity with maximum productivity
- Ceiling Mountable form factor ensures maximum comfort and pain, fatigue-free usage
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Power Consumption | 27 W |
| Networking & Connectivity | |
|---|---|
| Wireless Performance | AX3600 |
| Mesh Supported | Yes |
| Wi-Fi Generation | Wi-Fi 6 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Wireless Transmission Speed | 3.47 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | RADIUS |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 3.0 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Junction Box Mount |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | TP-LINK Technologies Co., Ltd |
