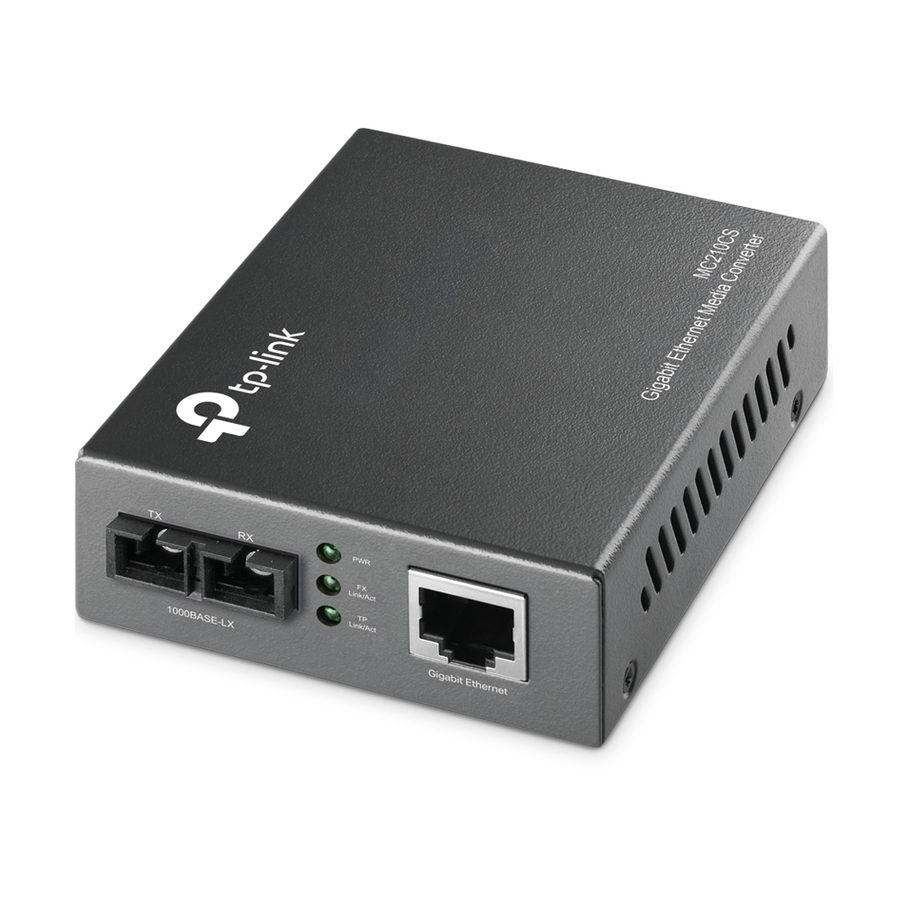

The MC210CS is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. It works at 1310nm on both transmitting and receiving data.
- External power supply. Wave Length: 1310nm. Max Power Consumption: 1.8W.
- Easy-to-view LED indicators provide status to monitor network activity easily.
- Extends fiber distance up to 12.4 miles (20km).
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.
- Designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Power Consumption | 1.80 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Maximum Distance Supported | 15 km |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
TP-LINK MC210CS - Gigabit SFP to RJ45 Fiber Media Converter - Fiber to Ethernet Converter - Grey - 10/100/1000Mbps RJ45 Port to 1000Base-LX Single-Mode Fiber
