Designed for Warehouses

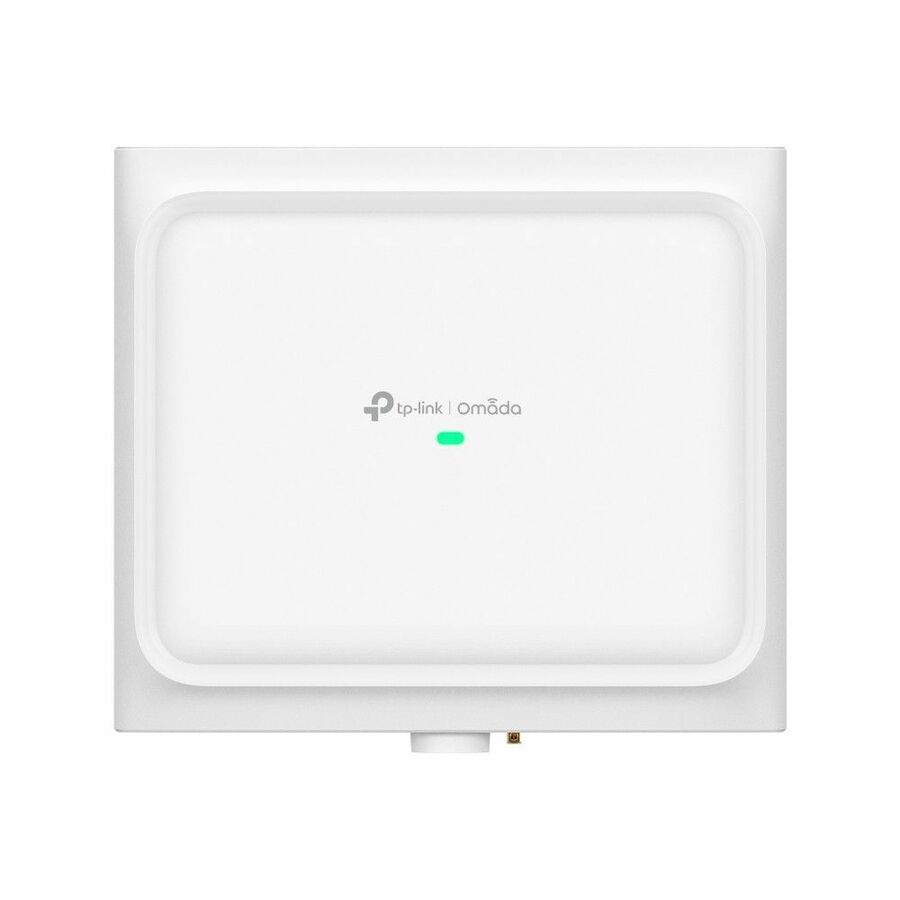

The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
- Durable Waterproof Enclosure
- Operating Temperature of -30°C to 70°C
- No Ingress of Dust
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4� built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.
- Recommended Installation Height 13 ft / 4 m
- Recommended Coverage Length 262 ft / 80 m
Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios
- 2.4 GHz up to 1181 ft /360 m
- 5 GHz up to 2953 ft /900 m
Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D30-Outdoor which the client's signal strength is ≥ -75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Networking & Connectivity | |
|---|---|
| Wireless Performance | AX3000 |
| Wi-Fi Generation | Wi-Fi 6 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 3 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | RADIUS |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3-ENT |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor/Outdoor |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP68 |
