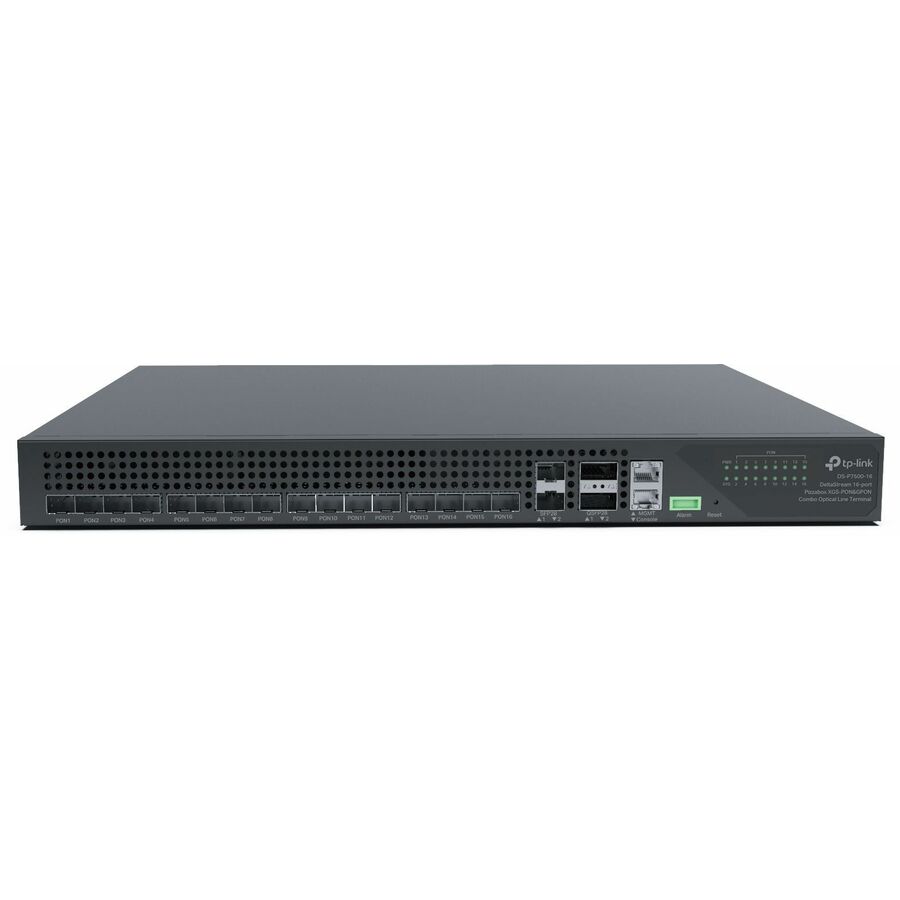

The DS-P7500-16 is a DeltaStream 16-port Pizza-Box XGS-PON& GPON Combo Optical Line Terminal with full L2 and advanced L3 features designed to meet a wide range of business needs. The pizza-box OLT supports a higher number of ONUs and its dual power supply redundancy design further improves the stability of the OLT network.
High Split Ratio for High Capacity Support 1:256 (XGS-PON) & 1:128 (GPON) splitting ratio for every port - up to 6144 ONTs by one device.
Redundant Dual Power Supplies Carrier-class reliability with redundant dual power supplies supporting AC, DC or mixed power input.
Compact Size for Flexible Deployment 19 inch rack mount size is flexible and easy to deploy, suitable for different application scenarios.
Centralized Management Makes maintenance easier with remote batch configuration and updates via DeltaStream PON Management System(DPMS), SNMP, CLI, and WEB UI.
- 16� PON Ports: 16� XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery.
- High Scalability: Supports a 1:128 splitting ratio for GPON services and 1:256 for XGS-PON.
- High-Speed Uplink Ports: 2� 100G QSFP28 and 2� 25G SFP2840G QSFP+ ports offer ultra-fast high-bandwidth uplink connectivity.
- Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies.
- Zero-Touch Activation: Simplifies field operations with automated ONU onboarding.
- Auto Provisioning: Deliver personalized broadband plans based on predefined service profiles.
- Multi-Level QoS: Delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experience.
- Advanced L2/L2+ Functions: Rich and robust functions satisfy flexible deployment and scalability needs.
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage Range | 100 V - 240 V |
| Power Source | AC/DC |
| General Features | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Compliance & Certification | |
|---|---|
| Humidity (Non-condensing) | 5% to 90% |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
