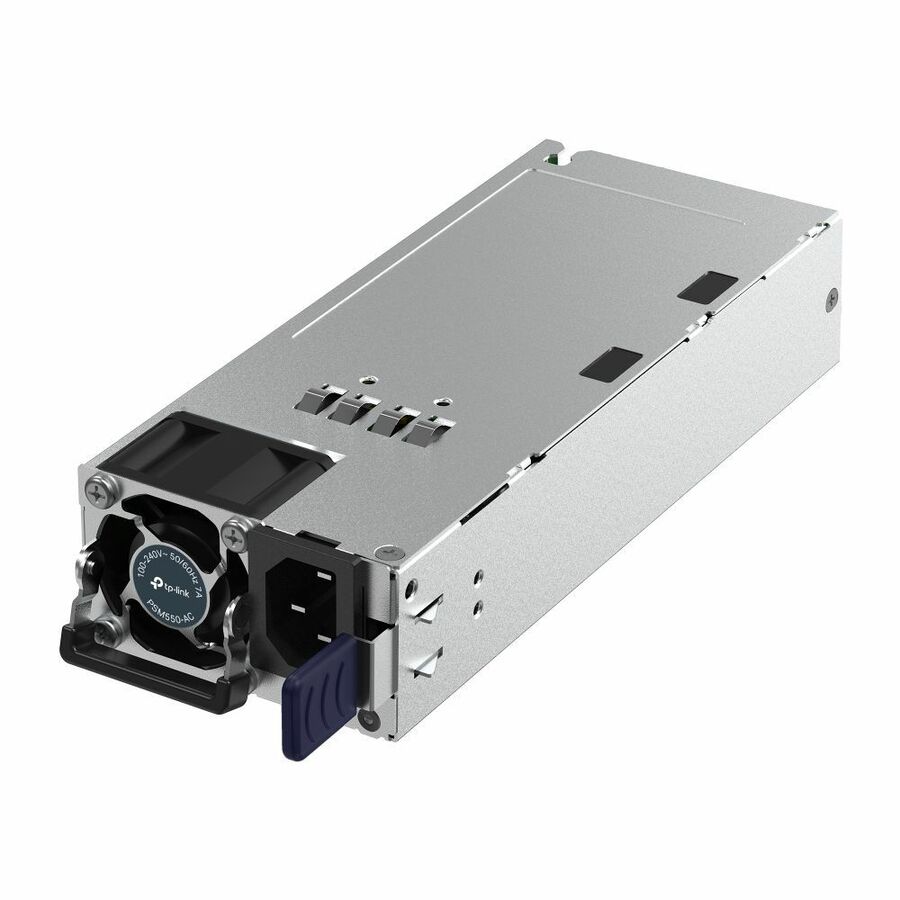

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
- Up to 550 watts output power
- 12 V DC output voltage
- Fully hot-swappable, ensuring no system interruption during installation or replacement
- Output over-voltage/over-current/short circuit/over-temperature protection
- ±4 kV surge protection
- Suitable for SX6632YF, S7500-26XF6Y
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Input Frequency | 60 Hz |
| Input Voltage | 230 V AC |
| Output Voltage | 12 V DC |
| Input Current | 7 A |
| Output Current | 45 A |
| Output Power | 550 W |
| General Features | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
