MG11 Series

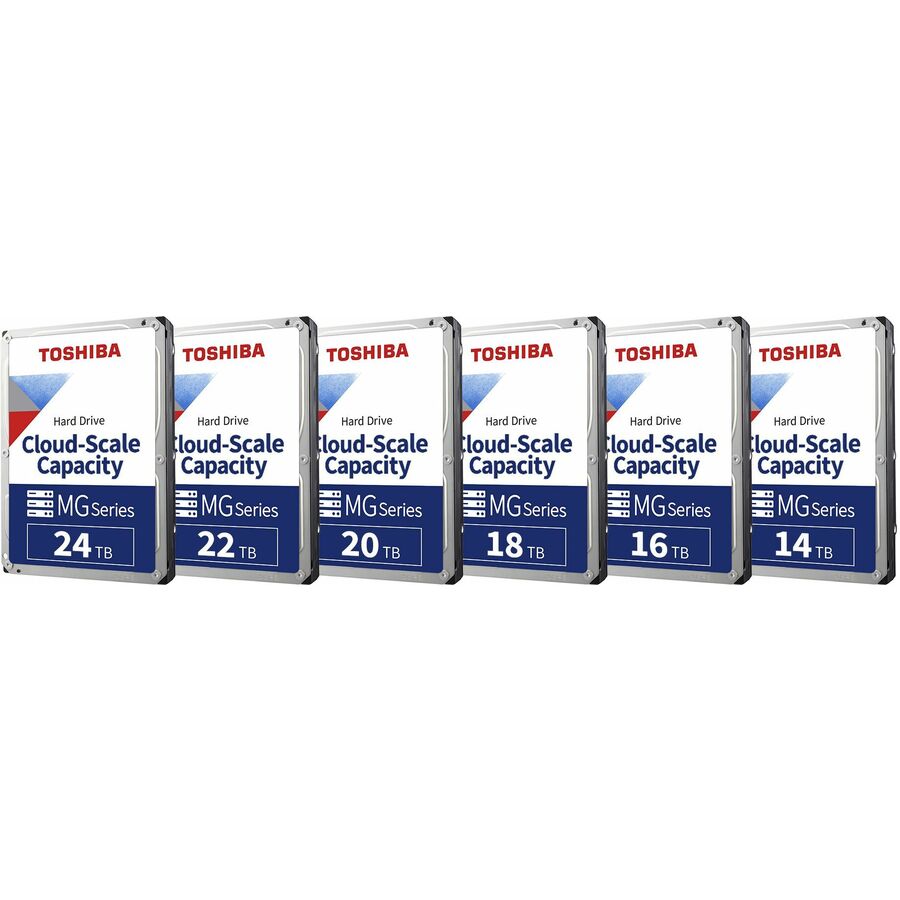

Built on 50 years of Toshiba's HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology to achieve 2.4TB per disk. Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550TB with 7200 rpm, and is available in 6Gbps SATA and 12Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind. In addition to 24TB, the MG11 is available in 22TB, 20TB, 18TB, 16TB, and 14TB in both SAS and SATA interfaces with SIE and SED options.
Key Features
- Up to 24 TB capacity
- Conventional Magnetic Recording (CMR) for broad compatibility
- Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
- Industry-leading 10-disk helium-sealed design for superior storage density
- Industry Standard 3.5-inch 26.1 mm height Form Factor
- 7200 rpm Performance
- Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
- 550 Total TB Transferred per Year Workload Rating
- Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model
Applications
- Data Center Applications
- Big Data
- Video Surveillance
- Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
- Compliance Data Archives and Data Life-Cycle Management Storage Systems
- Data Back-up Infrastructure
- With 20 TB capacity, you have ample space to store a vast number of images, extensive hours of video, or a large collection of songs
- Offers fast and reliableaccess to data with non-volatile memory, ensuring consistent performance and data retention
- Experience faster data storage with the SATA/600 interface, designed to optimize burst performance for enhanced efficiency
- 3.5" form factor ensures consistent performance, making it ideal for users who need dependable storage solutions in demanding environments
- Ensures fast and dependableaccess to data with non-volatile memory, maintaining consistent performance and reliability
| Brand | |
|---|---|
| Brand | Toshiba |
| Storage | |
|---|---|
| Storage Capacity | 20 TB |
| Drive Type | Internal |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Spindle Speed (rpm) | 7200 |
| Endurance (TBW) | 550 TB |
| Disk Format | 512e/4Kn |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Size / Dimensions | |
|---|---|
| Form Factor | 3.5" |
| General Features | |
|---|---|
| Mean Time Between Failures (M | 285.2 Year |
| Manufacturer | Toshiba |
