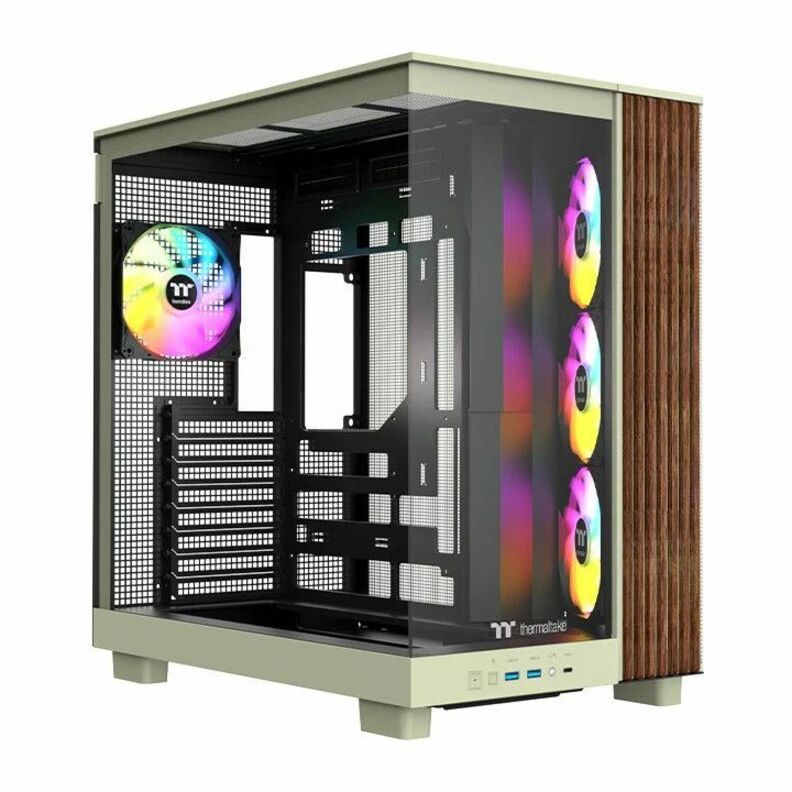

The View 380 XL WS ARGB Mid Tower Chassis
Hidden Connectors, Hidden Cables
Created for next-generation motherboards, the View 380 XL WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Dual Chamber Design
Dual chamber chassis generally have the benefits of an increase in cable management and back section space and the View 380 XL WS ARGB is no exception. Utilizing a floating style PSU mount the rear chamber has ample room and tie downs for routing and managing cables for a easy to work with layout.
A Cool View
The View 380 XL WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.
Up to 360mm Radiator Support
The View 380 XL WS ARGB is capable of accepting up to a 360mm radiator on the top and on the side of the chassis. Check out the links below for some options from TT.
Fans to Get You Started
The View 380 XL WS ARGB comes with four 120mm ARGB Lite Fans pre-installed, three reverse version fans are mounted on the side intake to bring fresh air into the chassis and another standard fan is mounted in the rear of the chassis to provide some exhaust. For lighting each fan has 9 LEDs installed in the hub and controlled via a 3 pin ARGB connection for easy control through your motherboards lighting software.
GPU Anti-Sag Brace
Prevent GPU sag with the included support brace. Mounting to the motherboard tray the brace can adjust vertically to suit whichever card you decide to build with.
Flexibility to Build Your Ideal PC
Storage for Your Storage
Equipped with a hinged storage door that secures to the chassis with one screw at the top and bottom and rubber pads for vibration dampening. The tray can support up to three 2.5" SSDs or one 3.5" HDD and is fully removable from the chassis for easy drive mounting and removal.
Front Mounted I/O
Utilizing two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port and an HD audio port the View 380 XL TG ARGB Future Dusk provides easy access to connectivity when you need it and a clean look when you don't.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 3 bays for a tailor-made PC configuration
- The high air flow mid-tower casing to protect the hardware components
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 16.54" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 7.09" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 (Gen 2) Type C |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mid-tower |
| Appearance | |
|---|---|
| Window Panel | Yes |
| Window Panel Location | Left Side |
| General Features | |
|---|---|
| Motherboard Supported | Micro ATX |
| Cooler Type | Fan/Liquid Cooler |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 4 x 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.30" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 10 |
| Number of Fans Installed | 4 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 8 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 3 |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 3.5" Bays | 1 |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
