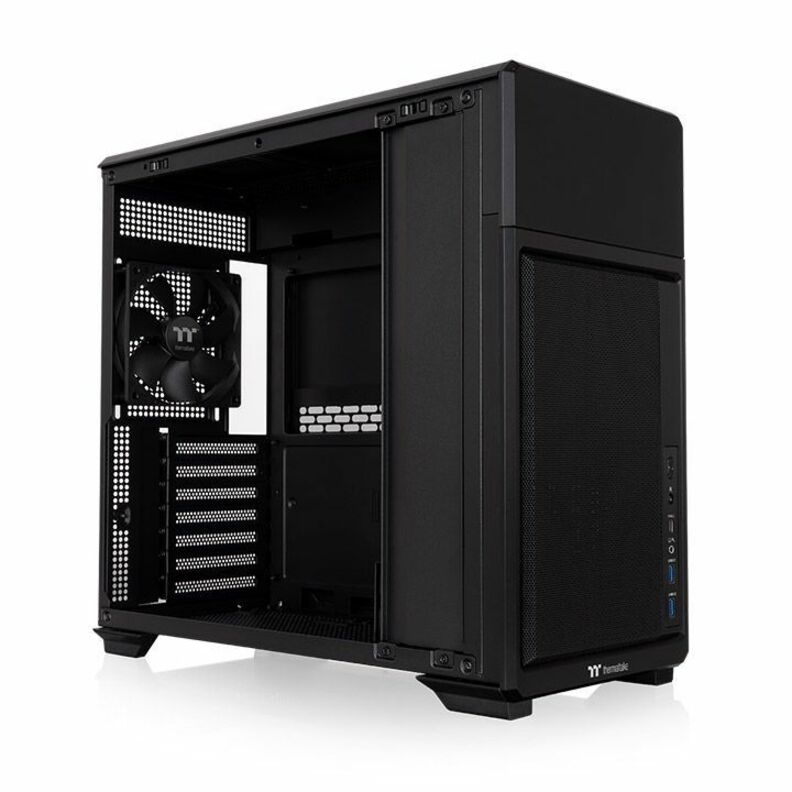

TR300 TG Mid Tower Chassis
The TR300 TG Mid Tower Chassis is an ATX case featuring front mounting PSU design for space efficiency and supports up to 360mm AIO for maximum cooling efficiency. An optional 6" LCD Screen Kit is available for enhanced visuals. Up to eight 120mm fans, and it supports up to 360mm radiator at the top, providing flexible options for cooling solutions.
PSU Installation Compatibility
Supports Mini-ITX, Micro-ATX, and ATX motherboards; power supply can be installed at four mounting points inside the case according to motherboard size.
Power supply rack with 4 position adjustments : A to D
A Maximizes graphics card clearance
B Allows three 120 mm fans to be installed on the top
C Supports a 360 mm AIO radiator on the top
D Maximizes AIO clearance to accommodate thicker radiators and fans
- Front of the chassis when Front Panel is removed
- PSU can be installed in these four positions
When installing GPU on M-ATX motherboard, PCIe Slot 1 is usually used.
When installing GPU on ATX motherboard, PCIe Slot 2 is usually used.
Hardware Clearance Scenario
Maximizing AIO Radiator
With a 360 mm AIO radiator on the top
- When installing GPU in PCIe Slot 1
Maximizing GPU Length
With a 240/280 mm AIO radiator on the top
- When installing GPU in PCIe Slot 1
Visually Pleasing, Totally Interactive
Maximize your TR300 TG Mid Tower Chassis visual effects by upgrading it with our LCD Screen Kit.
The 6" LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.
Personalize Your LCD Display
Through the TT RGB Plus, the 6" LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
Unleash Limitless Creativity with AI Forge
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.
Note: AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI's pricing standard as of August 2025, the average cost per image generation is about USD 0.04.
Good Dust Protection
Removable dust filters help keep your system clean while maintaining optimal airflow.
Storage Support
For storage compatibility, the chassis supports up to two 3.5" HDDs and three 2.5" SSDs for flexible installation.
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 5 bays mean more PC components can be added to enhance system's performance
- With the support of 8 fan(s), the high air flow mid-tower casing protects and enhances the hardware components
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 16.14" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 10.24" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 (Gen 2) Type C |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Audio | |
|---|---|
| Microphone | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mid-tower |
| Appearance | |
|---|---|
| Color | Black |
| Window Panel | Yes |
| Window Panel Location | Side Panel |
| General Features | |
|---|---|
| Motherboard Supported | Micro ATX |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.50" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 8 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 7 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 5 |
| Number of Internal 2.5" Bays | 3 |
| Number of Internal 3.5" Bays | 2 |
| Brand | Thermaltake Technology Co., Ltd |
| UPC/GTIN | 840480306311 |
| MPN | CA-11M-00M1WN-00 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
