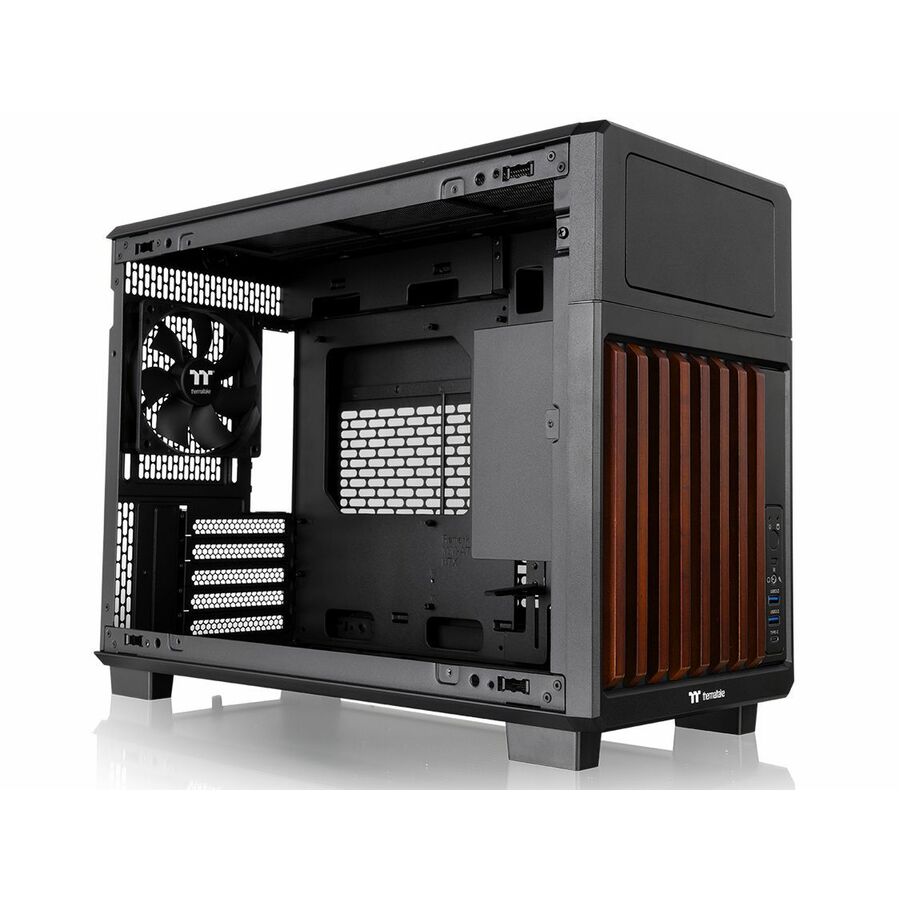

TR200 Wood Series Micro Chassis
Built for Micro-ATX and Mini-ITX systems with full-size hardware support, featuring room for up to 365mm GPUs, 175mm CPU coolers, and 258mmm PSUs.
Flexible Cooling Layout
Supports up to seven 120mm fans and up to a 360mm top radiator for high-airflow or liquid-cooled builds.
5.25" Expansion Ready
Adds support for optical drives, additional storage, fan controllers, or other 5.25" accessories.
Build-Friendly Convenience
Features easy-access panels, removable dust filters, and an adjustable GPU support bracket for easier building and maintenance
Removable Dust Filters
for easier cleaning.
Easy Bottom Access
for fan installation, cleaning, or cable adjustment.
Adjustable GPU Support
to help reduce GPU sag.
Handy I/O Ports
- Power Button
- Reset Button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
Storage for Your Storage
Supports HDD, SSD, and 5.25" drive configurations for expanding your setup.
Additional HDD Support
dedicated support for 1 x 3.5" HDD mount.
Flexible Drive Plate Design
supports up to 2 x 2.5" SSDs or 1 x 3.5" HDD.
5.25" Expansion Ready
compatible with optical drives and other 5.25" accessories.
Smart Personalization Ready
Through TT RGB Plus, the 6" LCD display presents real-time information and plays JPG and GIF files with 1480x720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
- Built-in GPU support arm with 365mm GPU clearance.
- Fits up to 7 x 120mm fans and a 360mm radiator.
- Supports 5.25" optical drive or accessory.
- Easy-access side panels and dust filters.
- Optional 6.0" LCD Screen Kit compatible.
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 14.37" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 10.16" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 (Gen 2) Type C |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Ports | 1 |
| Total Number of Audio In Ports | 1 |
| Headphone/Microphone Combo Port | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Audio | |
|---|---|
| Number of Microphone Array Elements | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro Tower |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan/Liquid Cooler |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.89" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 7 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 5 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 3.5" Bays | 2 |
| Brand | Thermaltake Technology Co., Ltd |
| UPC/GTIN | 840480307141 |
| MPN | CA-11L-00S1NN-WS |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
