Ready for Next-Gen Hardware

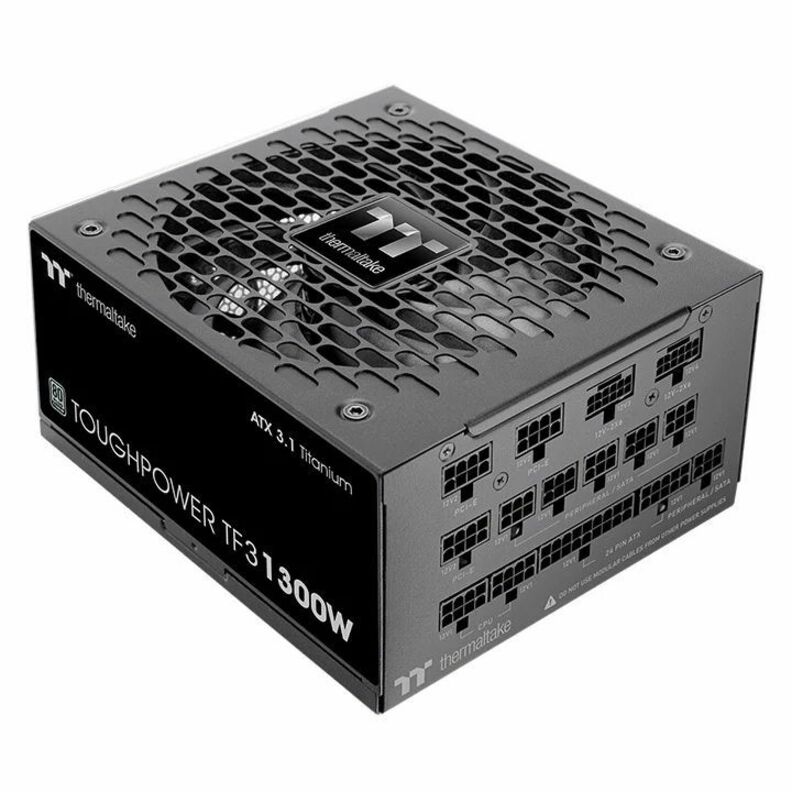

The Toughpower TF3 Titanium 1300W delivers outstanding 80 PLUS Titanium efficiency, designed to meet the demands of modern high-performance systems. Equipped with two native 12V-2x6 modular connectors, it supports PCIe 12+4 pin RTX 50 & 40 series cards, making it fully compatible with next-generation PCIe 5.1 graphics cards. Built to adhere to Intel ATX 3.1 specifications, this power supply ensures superior reliability and future-ready compatibility for cutting-edge hardware.
Fully Compatible with ATX 3.1 Standards
The Toughpower TF3 1300W is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
- ATX 3.1
- ATX 2.0
PCIe Gen 5.1 Ready | Dual Native 12V-2x6 Connectors
The Toughpower TF3 1300W features two native PCIe 12V-2x6 connectors and includes two PCIe 12+4 pin cables, providing powerful and stable performance to meet the power demands of next-generation PCIe Gen 5.1 graphics cards.
The wattage marked on the PCIe 12V-2X6's cable is the recommended wattage. (Ref. Intel design guideline) The native PCIe 12V-2X6 connectors of the Toughpower TF3 1300W can deliver up to 600W for PCIe 5.1 graphics cards.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The Toughpwer TF3 1300W is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & RTX series graphics cards, it also comes with 2 x PCIe 12V-2X6 connectors for RTX 50 & 40 series cards that need a PCIe Gen 5.1 connector, ready to supply the graphics cards according to their different ways of connections.
Unlock Peak Overclocking Performance | Manual Overclocking Mode Switch
The OCM switch gives you the power to optimize your system's performance with ease. By default, the power supply operates in Multi-Rail mode with Over Current Protection (OCP) to ensure maximum safety for your components. For overclocking enthusiasts, a simple press of the OCM switch transitions the power supply to Single 12V rail mode, unleashing enhanced power delivery when you need it most.
80 PLUS Titanium Certified
80 PLUS Titanium certification means the Toughpower TF3 converts power efficiently, saves energy through its high efficiency up to 94%, resulting in lower power loss and heat buildup inside the power supply.
Thermaltake Customized Cooling Fan
The Toughpower TF3 1300W features the Thermaltake customized cooling fan, it is designed with specially tuned fan blades to push air further.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
High-Class Technologies
The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.
- 80 PLUS Titanium certified
- ATX 3.1 & PCIe 5.1 ready
- Deliver up to 600W for PCIe 5.1 graphics cards.
- Physical overclocking mode switch
- Ultra quiet Thermaltake customized cooling fan
- 100% Japanese electrolytic capacitors
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| NVIDIA SLI Supported | Yes |
| Power & Battery | |
|---|---|
| Number of (6+2 pin) PCI Expre | 5 |
| Number of SATA Power Connecto | 16 |
| Number of (4+4 pin) CPU Power | 2 |
| Modular Type | Fully Modular |
| Input Frequency | 50 - 60Hz |
| Input Voltage | 230 V |
| Output Voltage | 5 V SB |
| Output Current | 3 A |
| Efficiency | 94% |
| Output Voltage Detail | 5 V SB @ 3 A |
| Power Factor Correction (PFC) | Active |
| Number of +12V Rails | 4 |
| Output Power | 1300 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Fan Diameter | 140 mm |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| MTBF | 100000 Hour |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Fan Bearing Type | Hydraulic Bearing |
| Number of Fans | 1 |
| Expansion Slots | |
|---|---|
| PCI Express Version | 5.1 |
| PCI Express Connector | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | 80 Plus Titanium |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 41°F (5°C) |
| Specification Compliance | ATX 3.1 |
