New Engineered Fan Blade

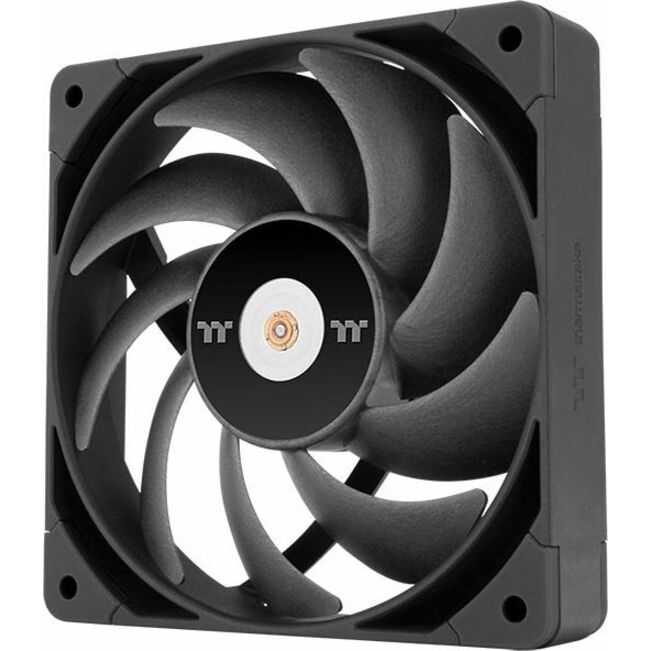

The TOUGHFAN 14 Pro, a new and improved version of the classic TOUGHFAN, boasts several enhancements. It features 9 extended and widened fan blades, which guarantee exceptional airflow and static pressure for enhanced cooling performance. Additionally, the fan blades are meticulously crafted from Liquid Crystal Polymer (LCP), a material that effectively minimizes vibrations when operating at maximum speed.
Stronger than Ever
With new technology and craftsmanship, TOUGHFAN 14 Pro can provide an outstanding performance of 119.6 CFM airflow, and 3.57-H2O static pressure under 31.6 dB-A noise level, which greatly upgrades our TOUGHFAN series.
Built for Superior Cooling
The TOUGHFAN Pro is designed for all cooling applications. It's the perfect go-to solution, whether you're using it as a radiator fan or on an air cooler. Level up your cooling performance with the TOUGHFAN Pro for superior results.
Extreme-tight Tip Clearance
The TOUGHFAN 14 Pro demonstrates outstanding craftsmanship, incorporating a special tight tip clearance of that reduces airflow leakage and improves efficiency when working with heatsinks and radiators.
Optimized Metal-Reinforced Motor Hub
By improving the Motor Hub for TOUGHFAN Pro, we have upgraded its structure. As a result, the fan now features a full steel motor hub and a newly designed full copper housing around the bearing. This enhancement unleashes the fan's complete capabilities, ensuring unmatched stability and durability during operation.
The 2nd Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
Improved Structure for Superior Performance
The TOUGHFAN Pro is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation. Moreover, it has a beveled edge at the rear strengthening the overall airflow.
Anti-Vibration Mounting System
The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
We've Got Your Back!
Thermaltake TOUGHFAN Pro PC Cooling fans are a top-performing, high-end product line that is backed by a 5-year worldwide product warranty.
- The flawless rotation of up to 2000 rpm is just what you need for prolonged cooling
- Hydraulic Bearing fan bearing type for maximum cooling/heating usability with added feasibility
- The competent 5.51" fan(s) is specially designed for standard chassiss
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| Power & Battery | |
|---|---|
| Rated Current | 360 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 5.51" |
| Fan Depth | 0.98" |
| Fan Width | 5.51" |
| Fan Height | 5.51" |
| General Features | |
|---|---|
| Manufacturer | Thermaltake Technology Co., Ltd |
| Fan Bearing Type | Hydraulic Bearing |
| Maximum Air Pressure | 3.57mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 119.60 CFM |
| Fan Life | 4.6 Year |
| Cables | |
|---|---|
| Connectors | 4 PIN PWM |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 31.6 dB(A) |
