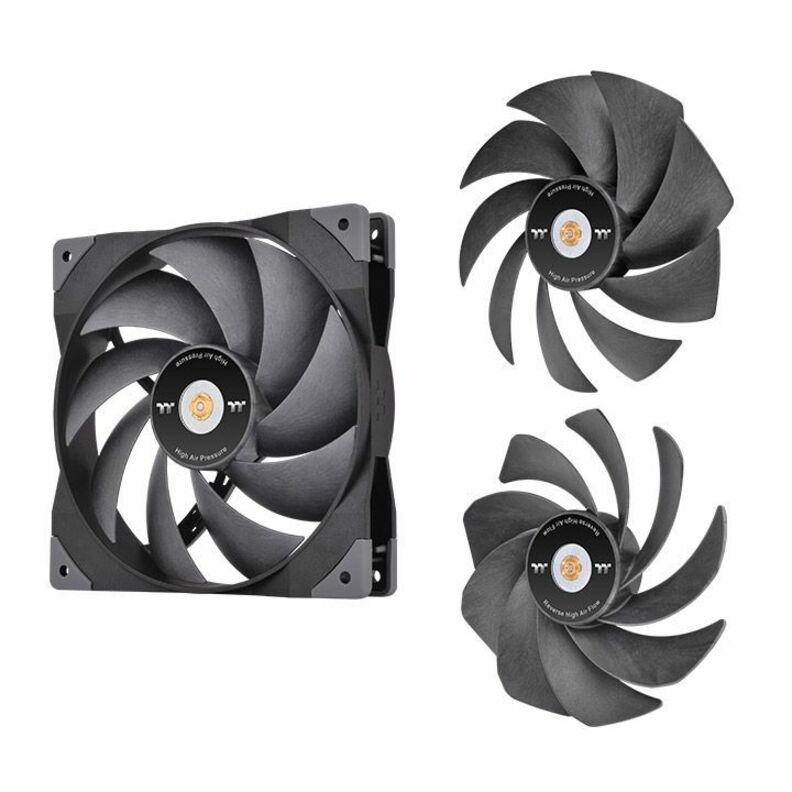

3 Types of Detachable Fan Blades For You to SWAP | High Static Pressure
The High Static Pressure Fan Blade is pre-installed onto the fan frame for users with instant demand for high static pressure fans. These fan blades are tuned to produce a static pressure of 3.33 mm-H2O with 100 CFM airflow under a 34.3 dB-A noise levels.
Sufficient Cooling Energy
With its static pressure, the High Static Pressure Fan Blade is designed explicitly to cope with high wind resistance objects, such as radiators or chassis' with multiple tempered glass panels.
High Air Flow
An additional fan blade in the box is the High Air Flow Fan Blade. You can switch out the high static pressure fan blade with the High Air Flow Fan Blade and get a fan with 109 CFM airflow while producing 2.76 mm-H2O static pressure under a 32.7 dB-A noise level.
Strong Cooling Performance
Compared to high static pressure fan blades, the High Air Flow Fan Blade has a more significant airflow, so it's recommended to use on a chassis that needs more air circulation to increase cooling performance.
Reverse High Air Flow
The third type of fan blade in the box is the Reverse High Air Flow Fan Blade. Even with reversed airflow direction, you can still get a static pressure of 2.48 mm-H2O with 107 CFM air flow under 36.1 dB-A noise level.
Simpler and Better Aesthetics
The Reverse High Air Flow Fan Blade brings the air from its back to its front, so there is no need to stare at the back of the fan for your desired airflow direction if you use the Reverse High Air Flow Fan Blades.
Don't turn your back ever again!
Unleash the power of your fans, let the front steal the show!
Less Cables, Less Mess
Incorporates the new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 3-pin PWM ports on your motherboard and shortens the cable length between the fans. We've also included two 900mm cables for you to easily manage your cables while assembling your build.
Cleaning Fans are now Easy and Fun!
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.
Anti-Vibration Mounting System
The anti-vibration rubber pad that can dampen the fan's vibration, allowing the fan to spin at higher levels without generating high noise levels. The rubber pads are designed to cover a large surface of all corners, maintaining low noise levels when in operation.
- The flawless rotation of fan blades is just what you need for prolonged cooling
- Hydraulic Bearing fan bearing type for maximum cooling/heating usability with added feasibility
- 5.51" fan(s) with 2510-4pin connector enables quick and stable connection with PCs
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| Power & Battery | |
|---|---|
| Rated Current | 360 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 5.51" |
| Fan Depth | 0.98" |
| Fan Width | 5.51" |
| Fan Height | 5.51" |
| General Features | |
|---|---|
| Manufacturer | Thermaltake Technology Co., Ltd |
| Fan Bearing Type | Hydraulic Bearing |
| Maximum Air Pressure | 3.33mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 109 CFM |
| Fan Life | 4.6 Year |
| Cables | |
|---|---|
| Connectors | 2510-4pin |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 36.1 dB(A) |
