Supports Intel LGA4677 & AMD sTR5 / SP6 Sockets

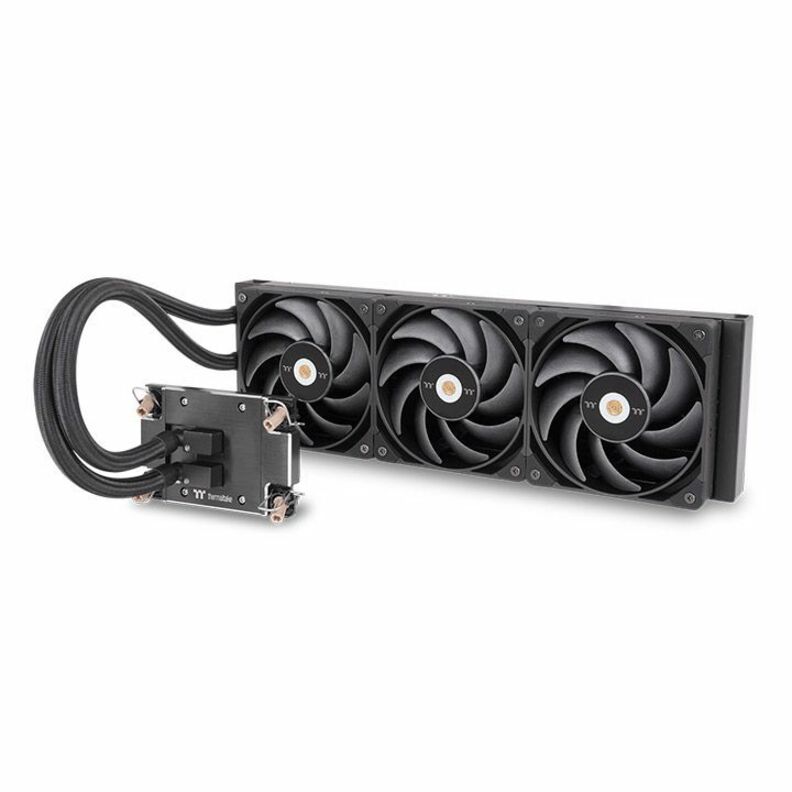

The AW420 AIO Liquid Cooler is designed for workstation setups, ensuring exceptional cooling efficiency for demanding workloads, such as 3D rendering, AI computing, and big data analytics. It can accommodate Intel LGA4677 and AMD sTR5/SP6 sockets, delivering broad compatibility with the latest workstation processors.
Thermaltake Workstation Ecosystem
Build a powerful workstation with the AW AIO Liquid Cooler Series, engineered to keep your system running smoothly under intensive tasks. Pair it with Thermaltake's new AX Series Chassis, featuring excellent airflow and expandability, to create a stable and optimized setup for professional applications.
Nickel-Plated Copper Water Block in Large Size
The water block is designed with an expanded structure to maximize heat dissipation and ensure full CPU coverage. Built with nickel-plated copper and with a copper-based active cooling surface, it offers exceptional cooling efficiency and durability for workstation systems.
High Static Pressure with TOUGHFAN Pro
The AW420 AIO Liquid Cooler is equipped with three TOUGHFAN 14 Pro fans, featuring an advanced blade design for outstanding airflow and static pressure. With a performance of 119.6 CFM airflow and 3.57 mm-H20 static pressure, while maintaining 31.6 dB-A noise level, these fans offer superior cooling efficiency.
For those looking to maintain consistency across their build, the TOUGHFAN Pro fans are also available for purchase individually.
Enhanced Radiator with a Compact Design
The AW AIO Liquid Cooler Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
Stable and Quiet Cooling
The high-quality pump maintains steady water circulation, keeping the copper plate consistently cool. Featuring a three-phase, six-pole motor integrated into the radiator, it minimizes pump noise while delivering efficient cooling performance.
Sleek All-Black Design
The AW AIO Liquid Cooler Series features an all-black aesthetic, delivering a modern and sophisticated look. Designed to blend style and performance, making it an ideal choice for enthusiasts seeking both visual appeal and cooling efficiency.
- Cooling Fan/Radiator/Water Block/Pump offers better protection with maximum cooling/heating efficiency and convenience
- The competent cooling system is specially designed for standard processors
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| CPU / Processor | |
|---|---|
| Compatible Intel Socket | LGA-4677 |
| Compatible AMD Socket | SP6 |
| Screen / Display | |
|---|---|
| Pulse-width Modulation (PWM) | Yes |
| Power & Battery | |
|---|---|
| Rated Current | 360 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 5.51" |
| Fan Depth | 0.98" |
| Fan Width | 5.51" |
| Fan Height | 5.51" |
| Radiator Depth | 1.06" |
| Radiator Width | 5.45" |
| Radiator Height | 17.95" |
| General Features | |
|---|---|
| Cooler Type | Liquid Cooler |
| Radiator Material | Aluminum |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Maximum Air Pressure | 3.57mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Number of Fans | 3 |
| Maximum Airflow | 119.60 CFM |
| Cables | |
|---|---|
| Connectors | 2510- 3 Pin |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 31.6 dB(A) |
