High speed network transmission, Experience extreme smoothness
Full gigabit ports , 56 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
- Full gigabit ports
- 56 Gbps Switching capacity
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 24 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 250W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
- Standard Mode
- Priority Mode
- Extend Mode
- VLAN Mode
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.

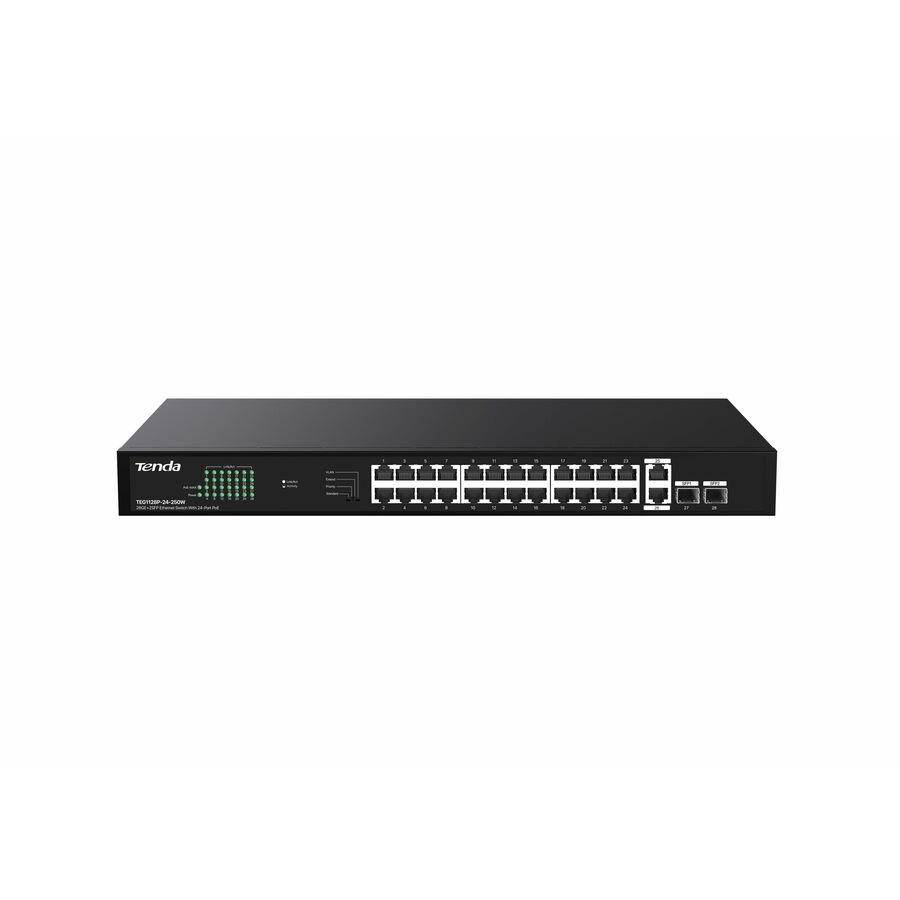

Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking,19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z? IEEE802.3x, IEEE802.3af/at
- 24 * 10/100/1000 Base-T Ethernet ports (Data/Power), 2 * 10/100/1000 Base-T Ethernet ports (Data), and 2 * 100/1000 Base-X SFP optical ports
- 8K MAC address and MAC address automatic learning
- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
- 56 Gbps non-blocking wire-speed forwarding backplane bandwidth
- The maximum output power of the PoE port is 30 W. The maximum output power of the switch PoE port is 230W.
- 4 Mb large buffer design
- Standard 1U height, rack mounted switch
| Brand | |
|---|---|
| Brand | Tenda Technology Inc |
| Power & Battery | |
|---|---|
| PoE Budget | 230 W |
| Input Voltage | 230 V AC |
| Power Source | PoE |
| Power Consumption | 250 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 26 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 125 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Tenda Technology Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x 100/1000Base-X SFP Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
