Gigabit ports, high speed network

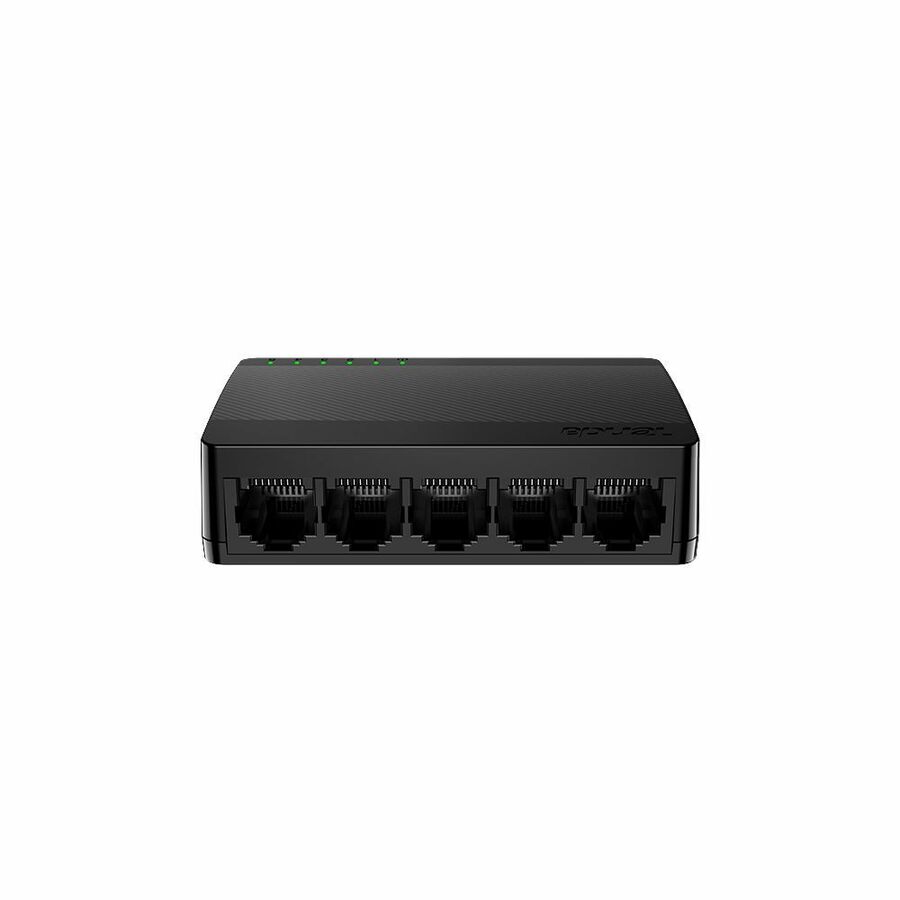

SG105M5-port Gigabit Ethernet Switch
Gigabit port, maximum speed connection
Equipped with 5 Gigabit Ethernet ports, the transmission speed is up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of lag and image loss in HD CCTV environments, easily loaded 400W HD surveillance cameras.
Small and stylish, save more space
Super reduced design of 82*52*22 mm, smaller than a credit card. Supports wall installation and can be placed anywhere.
Plug and Play, versatile connection
Each port supports MDI/MDIX auto-flip. Just by connecting the cable you will be browsing.
Wide application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs and game consoles, perfect for business and home environments.
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Tenda Technology Inc |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 5 |
| Number of Network (RJ-45) Ports | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Maximum Height Adjustment (Above) | 0.9" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 125 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Tenda Technology Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Brand | Tenda Technology Inc |
| UPC/GTIN | 885397276036 |
| MPN | SG105M |
| Unit Count | 1 Units |
