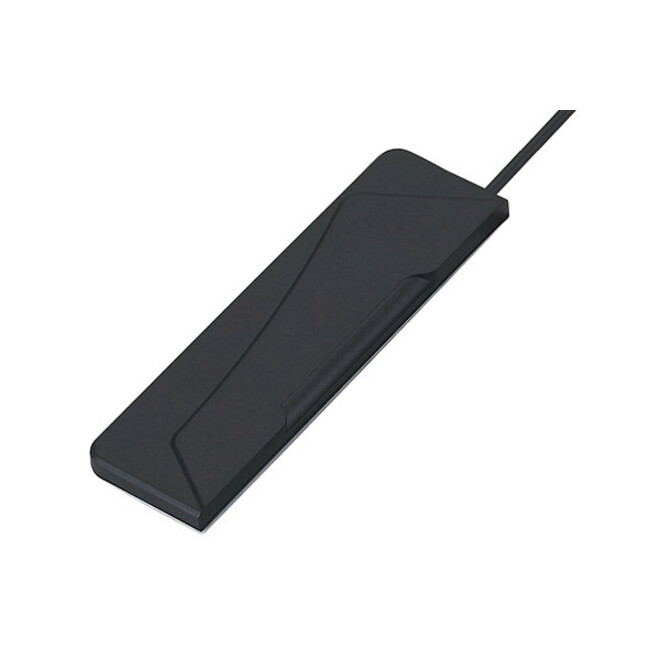

The GSA.8827 Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency cellular antenna for use with all 4G/3G/2G cellular modules worldwide.
Its slim-line design allows for covert and convenient installation in automotive vehicles, its omnidirectional gain across all bands ensures constant reception and transmission. GSA.8827 is manufactured and tested in a TS16949 first tier automotive approved facility, and it has gone through full PPAP design, reliability and quality audits.
The Phoenix finds its application particularly in first-tier automotive application, aftermarket and telematics.
With its unique ultra-wide band dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105mm*30mm.
This antenna is designed to be mounted on glass or plastic (not on metal). It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant. Cable lengths and connectors are fully customizable.
- 105mm*30*7.7mm
- RoHS compliant
- Ingress protection rating IP65
- Low profile for easy installation
- Fully customizable cable length and connector
- 1710MHz to 2700Mhz
- 1M RG-174 cable with SMA(M) connector
- HSDPA / GPRS / EDGE / GPS / Wi-Fi
- 698MHz to 960MHz, 1575.42MHz,
- LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS /
| Brand | |
|---|---|
| Brand | Taoglas |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Adhesive Mount |
| General Features | |
|---|---|
| Operating Frequency Range | 2490 MHz to 2690 MHz |
| Manufacturer | Taoglas |
| Cables | |
|---|---|
| Connector Type | SMA |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
