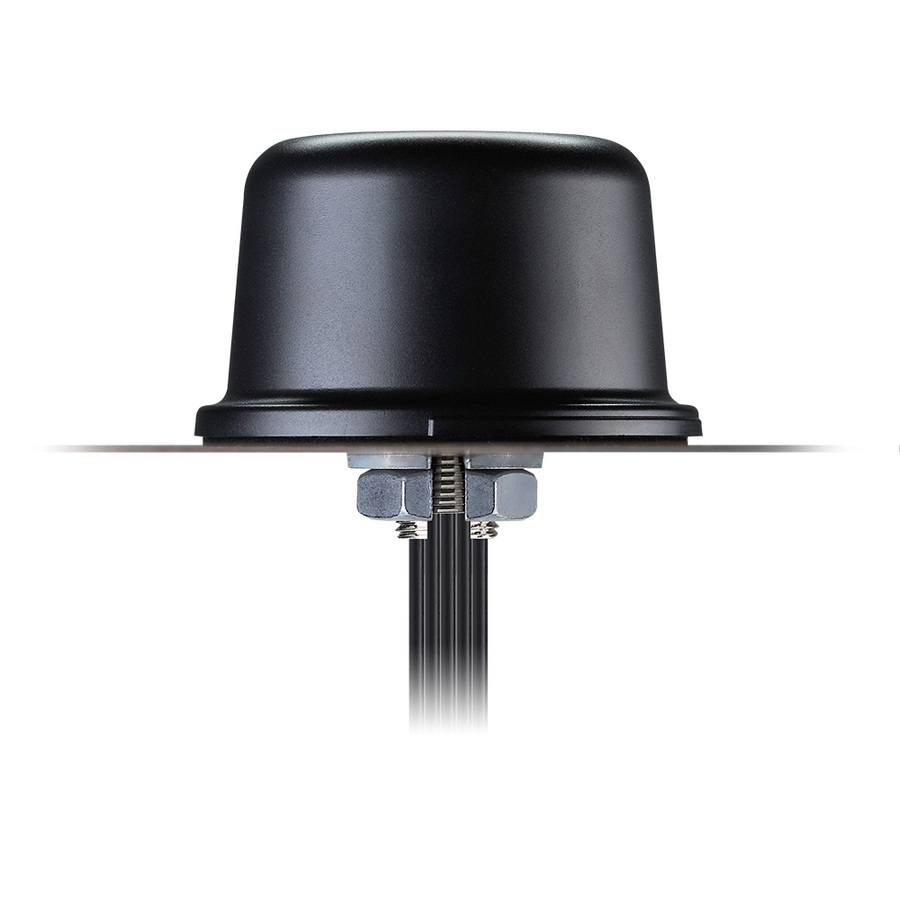

The Colosseum MA850 5in1 antenna is a low profile, heavy-duty, fully IP69K waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE, Wi-Fi and GNSS performance. It is ideal for solutions that do not have space for mounting the larger Pantheon dome antennas but still require good efficiency and gain. This unique product, at only 57.4mm tall, delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/2600MHz, dual-band Wi-Fi MIMO, plus GPS-GLONASS-GALILEO-BeiDou for next-generation location accuracy. The LTE antenna also includes legacy 3G and 2G bands to enable fallback using the correct modems in areas where there is no 4G signal.
- 0.3M RG174 with FAKRA code C/FAKRA Code D/FAKRA Code I
- Dims: Diameter 94.3mm, Height 57.4mm
- IP69K Enclosure
- Permanent Mount
- Worldwide 4G Bands including 3G and 2G
- Wi-Fi MIMO*2 2.4GHz/5.8GHz
- GPS-GLONASS-BeiDou Antenna
- LTE MIMO*2 698~960MHz/1710~2170MHz/2490~2690MHz
- Low Profile, Heavy Duty, Robust, 5-in-1 Antenna with small profile IP67 rated enclosure
| Brand | |
|---|---|
| Brand | Taoglas |
| Networking & Connectivity | |
|---|---|
| Antenna Type | Upper |
| Antenna Gain (Isotropic) | 4.3 dBi |
| Size / Dimensions | |
|---|---|
| Diameter | 3.71" |
| General Features | |
|---|---|
| Operating Frequency Range | 2.4 GHz to 5.8 GHz |
| Manufacturer | Taoglas |
| Cables | |
|---|---|
| Connector Type | FAKRA |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
