AI-Powered Camera for Integrated Smart Surveillance
Synology cameras are designed to pair with Surveillance Station,1 providing unparalleled ease of use thanks to quick and easy setup, batch configuration, and seamless firmware updates. They feature camera-based AI that enhances Surveillance Station deployments with smart capabilities.

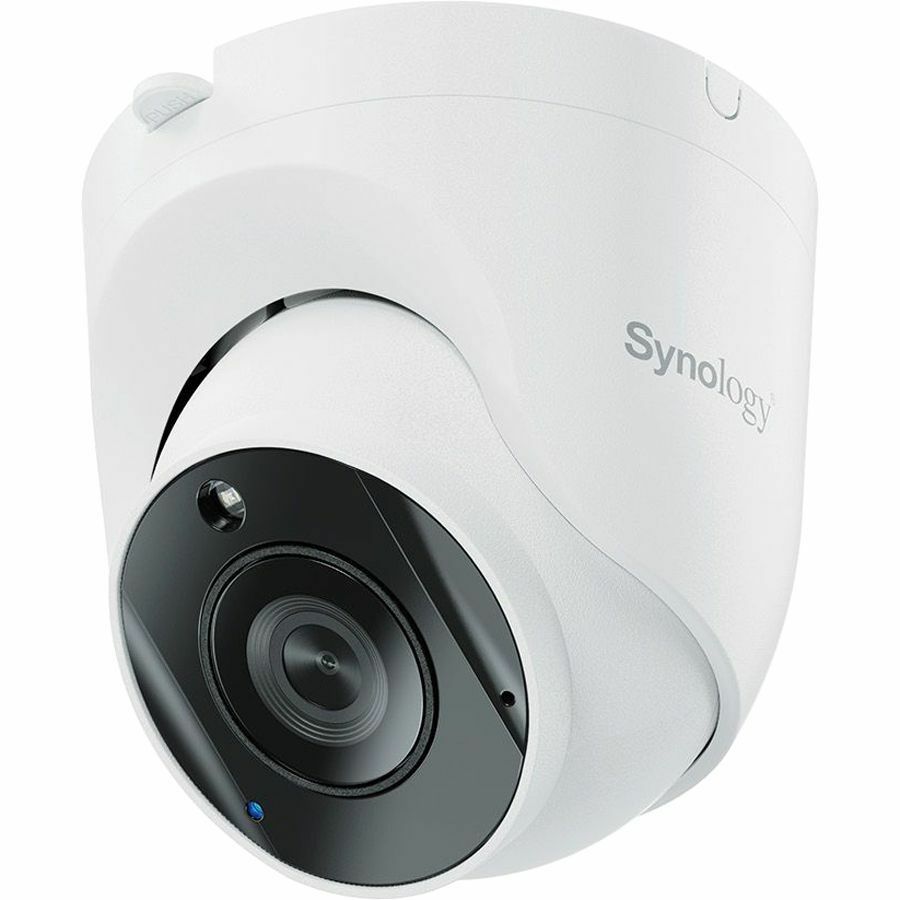

The TC500 is a versatile IP67-rated 5 MP wide-angle AI camera suitable for both indoor and outdoor use. Boasting a high resolution of 2880x1620 @ 30 FPS, 110° horizontal wideangle view, and night vision capability, the TC500 captures all the details you need.
Capture quality
Highly detailed, wide-angle coverage helps secure large areas, night or day.
- High resolution of 5 MP (2880�1620) 16:9 provides clear and detailed videos
- 110° wide horizontal viewing angle captures large areas at once and reduces the need for multiple cameras
- Large aperture of F1.8 and multi-exposure HDR provide good low-light performance without overexposing lighter areas
- High power infrared LED provides clear night vision up to 30 meters
Video intelligence
Camera-based AI capabilities empower your surveillance with smart analytics.
- People and Vehicle Detection distinguishes people and vehicles from other moving objects with high accuracy
- Intrusion Detection identifies people and vehicles, and issues alerts when a virtual border is crossed from a designated direction
- Instant Search allows for quick investigations with the ability to search for people, vehicles, and motion in an area in the past
- Pair with Synology DVA models for more intelligent analytics, such as face recognition, license plate recognition, and people counting
Streamlining and integration
Integration with Surveillance Station streamlines deployment and maintenance.
- Quick and simple single camera or batch installation process through Surveillance Station or the DS cam app speeds up deployment
- No Surveillance Device License purchase or activation required
- Camera settings adjustment and maintenance features are available directly in Surveillance Station or DS cam
- Continuous firmware updates provide new features and security enhancements, and can be applied in batch, with or without internet
- Failover edge storage increases system reliability by automatically switching to microSD recording in case of network failure
Security and privacy
From recording to archiving, protect your footage with our integrated safeguards.
HTTPS & SRTP support enable encrypted network and video transfer, authentication, and integrity protection
- For remote surveillance needs, this network camera is best suited
- Up to 2880 x 1620 resolution for surveillance in real-time
- 2.80 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.8 maximum aperture for better light absorption and dependable, better-quality results
- Provides night vision of objects at a distance of up to 98.43 ft
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Day/Night feature for better reliance and usability
- Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
| Brand | |
|---|---|
| Brand | Synology |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Protocols | SRTP |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Field of View | 110° H , 132° D (LDC ON) , 56° V |
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 5 Megapixel |
| Maximum Video Resolution | 2880 x 1620 |
| Maximum Focal Length | 2.80 mm |
| Maximum Aperture | f/1.8 |
| Shortest Shutter Speed | 1/16000 Second |
| Longest Shutter Speed | 1/30 Second |
| Lens Type | Fixed |
| Night Vision Distance | 98.43 ft |
| Maximum Frame Rate | 30 fps |
| Image Sensor Size | 1/2.7" |
| Size / Dimensions | |
|---|---|
| Form Factor | Turret |
| Diameter | 3.8" |
| General Features | |
|---|---|
| Remote Management | Yes |
| Durability | Impact Resistant |
| Indoor/Outdoor | Indoor/Outdoor |
| Video Formats | H.265 |
| Manufacturer | Synology, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 95% |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Ingress Protection Rating | IP67 |
| Impact Protection Rating | IK10 |
