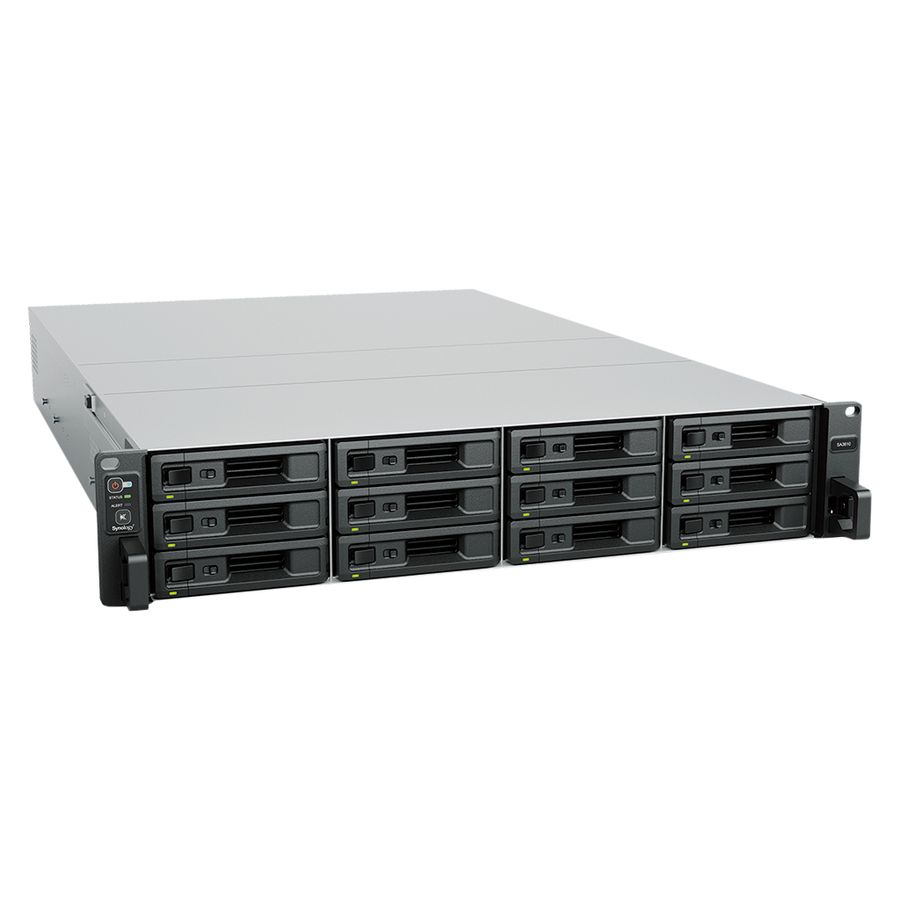

SA3610 & SA3410 | Flexible petabyte-scale storage for growing storage needs
When scalability meets performance
The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.
Fast and reliable
Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.
Expand and adjust
Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.
Host core applications
Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users.
Flexibly expand storage capacity
Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.
Networking capabilities
Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.
Reliable and dependable
Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.
Data mirroring
Create a Synology High Availability (SHA) cluster on your servers to minimize data loss and enjoy minute-level failover with two SA3610 or SA3410 to act as active and passive servers.
Versatile data storage
Consolidate business data, backup data, and more in a highly scalable server.
File server
Utilize SA3610 and SA3410's storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.
Private cloud
Share and sync files with an all-in-one private cloud solution
Empower employees across your organization to access, edit, and share corporate files securely and conveniently from desktop, mobile, or web browser platforms. Leverage powerful admin tools to track and set file permissions and control access to documents and files.
Enforce company policies with Windows AD and SMB/NFS
Configure and implement group policies for groups of users using access control lists (ACL) through Windows Active Directory/LDAP integration. Enable user access to files or folders via SMB or NFS protocols.
Backup repository
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.
- NAS Storage System offers maximum storage efficiency and convenience
- Tested to support 12 SSD, and provide a total of 1740.80 tb SSD capacity
- Through RAID levels (0, 1, 5, 6, 10, basic, jbod, raid f1), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Up to 1740.80 tb Data Storage Capacity - great for demanding organizational needs
- 1740.80 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.10 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable nas storage system allows easy and convenient usage without any trouble
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
| Brand | |
|---|---|
| Brand | Synology |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | D-1567 |
| Number of Processors Installed | 1 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.10 GHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 , 5 , 6 , 10 , JBOD , Basic , RAID F1 |
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| Total Solid State Drive Capacity | 1740.80 TB |
| RAID Supported | Yes |
| Total Hard Drive Capacity Supported | 1740.80 TB |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 550 W |
| Networking & Connectivity | |
|---|---|
| Protocols | CalDAV |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 6 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Controller Type | Serial ATA |
| Manufacturer | Synology, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Miscellaneous | |
|---|---|
| Product Name | SA3610 NAS Storage System |
